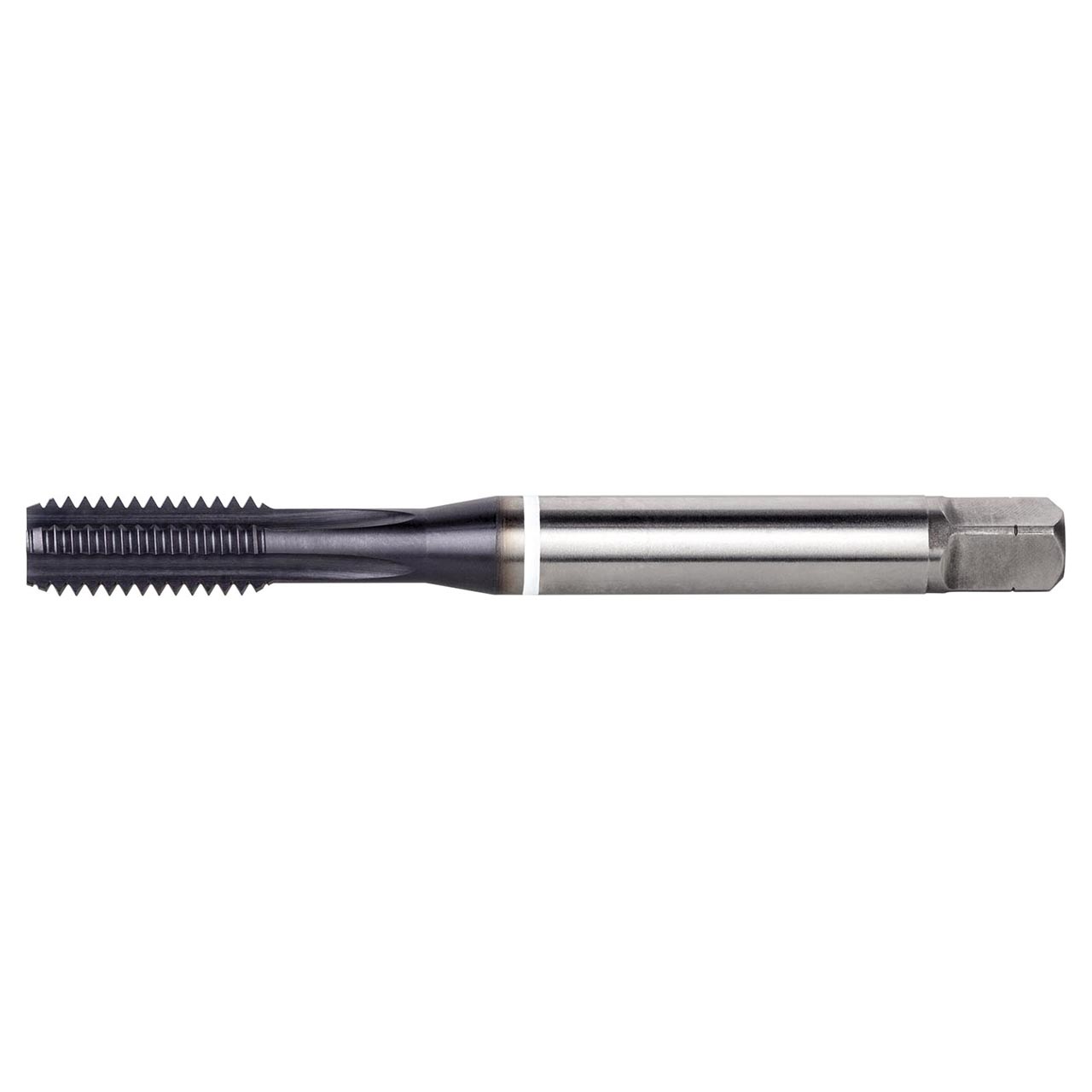

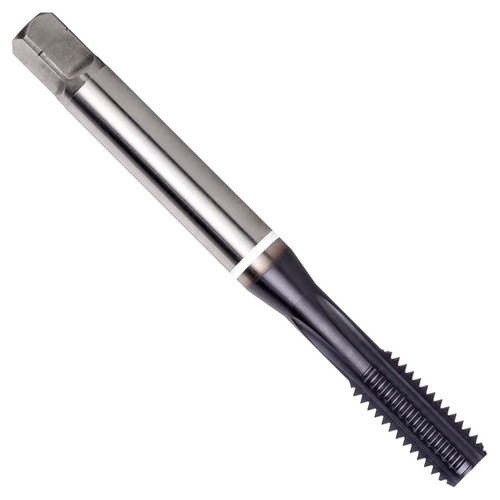

Dormer E8157/16 | 0.323" Diameter 4 Flute TiAlN/Top Coated Straight Flute Tap

$67.05
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15025854
UPC:
7320760750780
Weight:
1.52 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for Unified National Coarse thread UNC 7/16" with 14 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3230" shank and 0.2400" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.323"
No of Flutes4
Thread Diameter Size7/16
Material CodeHSS-E-PM
Thread Tolerance Class2BX
Threading Length (Inch)0.787"
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleE 1.5-2
Surface ColorBlack - Deep Purple
Thread FormUNC-Unified Coarse
