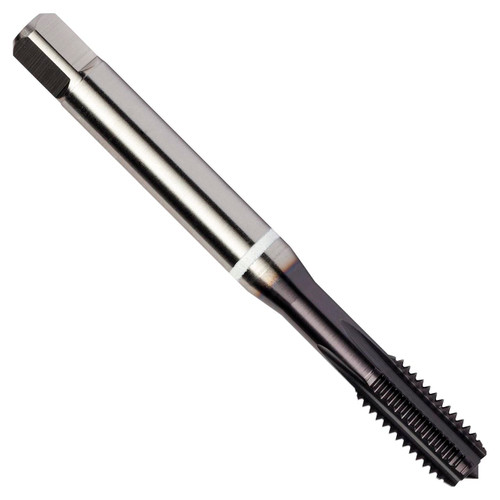

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 7/16" with 14 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3230" shank and 0.2400" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.
| Connection Diameter (Inch) | 0.323" |
| No of Flutes | 4 |
| Thread Diameter Size | 7/16 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2BX |
| Threading Length (Inch) | 0.787" |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNC-Unified Coarse |
| Country of origin | India |
