Dormer EP11M14X1.5 | 0.4331" Diameter x 3.937" OAL 3 Flute Steam Tempered Coated Spiral Point Tap

$67.50
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023192
UPC:
7320760137857
Weight:
2.58 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

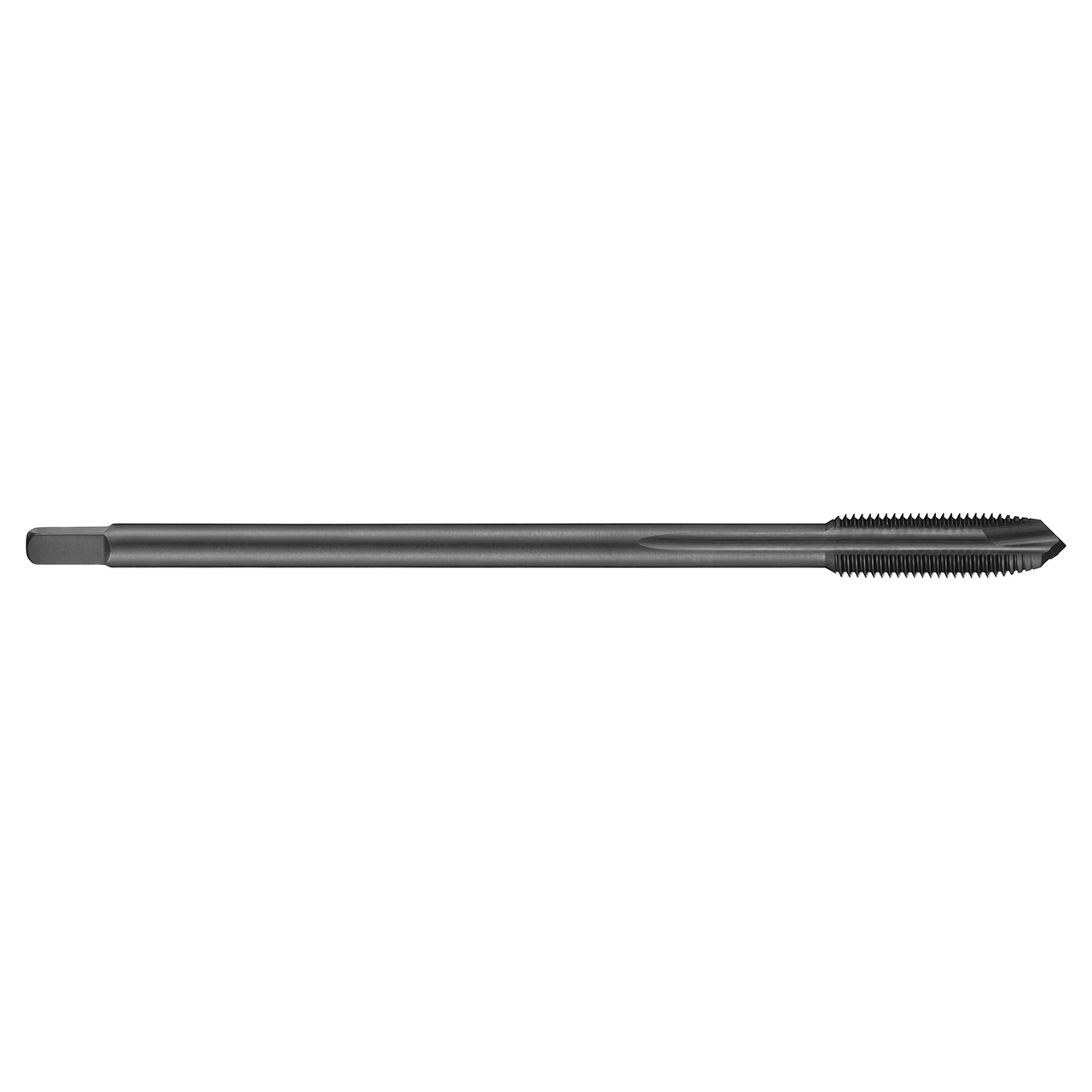

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M14 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in alloy steel.


Product Specifications
Connection Diameter (Inch)0.4331"
Overall Length (Inch)3.937"
Clamping Width (mm)9mm
No of Flutes3
Thread Pitch (mm)1.5mm
Clamping Length12
Thread Diameter Size14
Threading Length (mm)21mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleB 3.5-5
Surface ColorBlack
Thread FormMF-Metric fine
