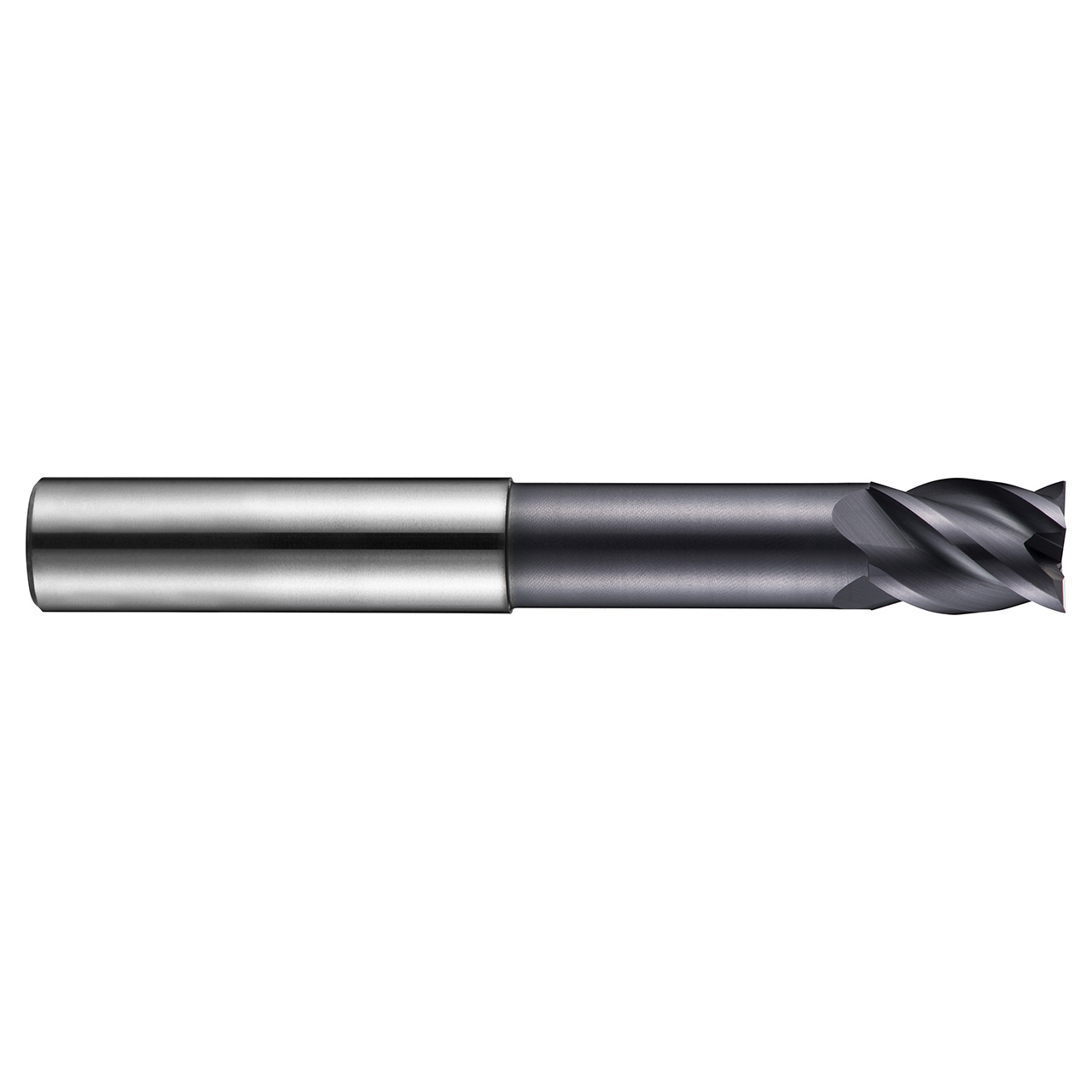

Dormer S2193.0 | 0.1181" Diameter x 2.3622" OAL 4 Flute AlTiN Coated Square End Mill

$56.16
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140978
UPC:
7320760681879
Weight:
0.30 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

For high rigidity when milling and profiling in hard to reach areas, S219 4 flute milling cutters have a long reach and a 40 degree helix angle for high performance profiling on CNC machines. The aluminium titanium nitride coating increases the life of the tool and improves performance when milling difficult to machine materials and the premium carbide used in manufacture will further extend tool life and give you superior performance. S219 4 flute milling cutters are designed specifically for milling heat resistant alloys and other difficult to machine materials.


Product Specifications
Usable Length (mm)30mm
Max Depth of Cut (mm)5mm
Connection Diameter (Inch)0.1181"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)2.3622"
Material CodeHM
Radial Rake Angle3
No of Flute4
Flute Helix Angle40
CoatingAlTiN
Surface ColorBlack-Deep Purple
