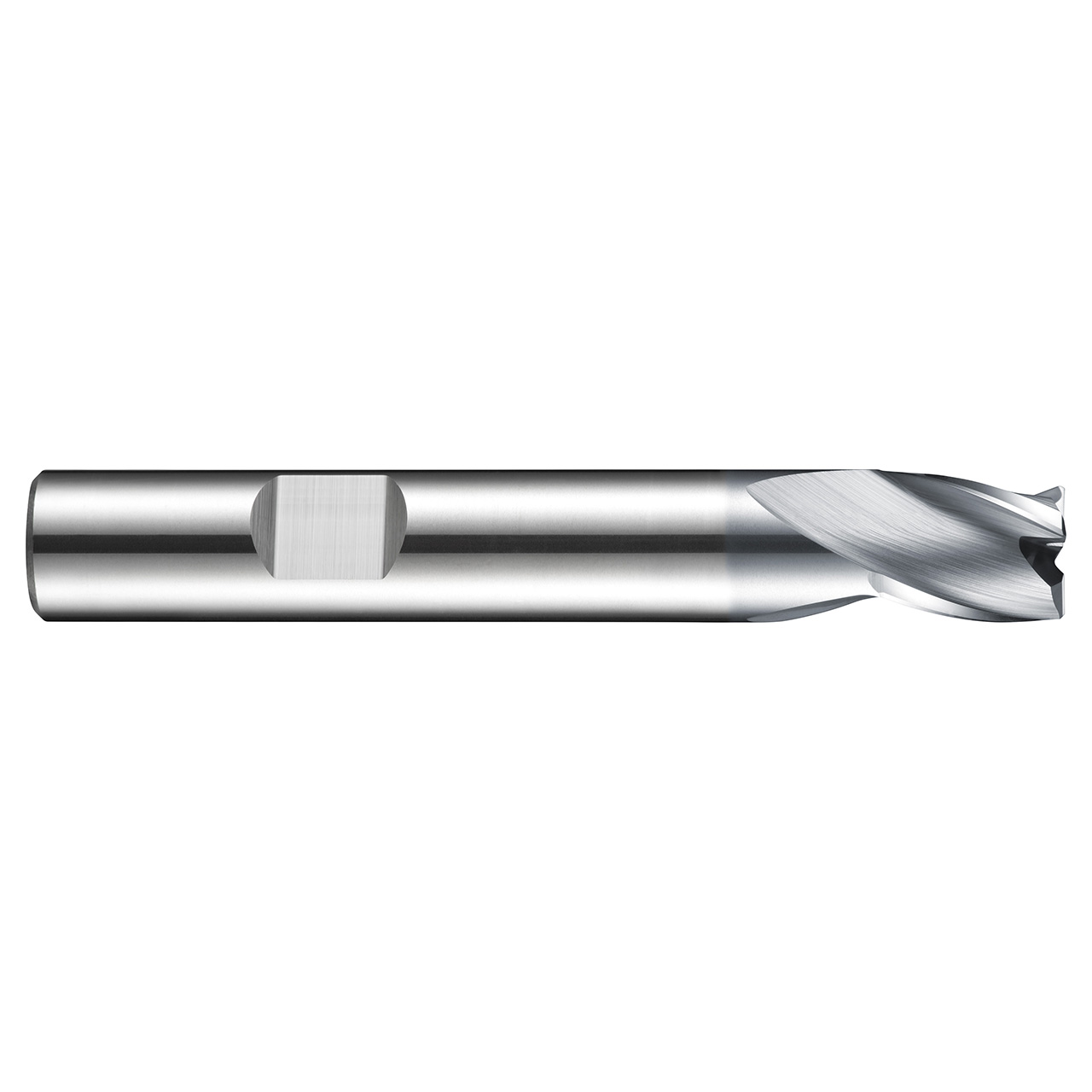

Dormer's S803HB 3-flute milling cutters have a special Alcrona top for improved performance when milling difficult to machine materials. They have a short length flute for extra rigidity for milling shallow slots and, with an accurate diameter, are capable of milling standard keyway slots to P9 tolerance. Manufactured from premium carbide, S803HB 2-flute cutters will give you great performance with longer tool life and are very versatile, being suitable for plunging ramping and profile milling in steels, stainless steels, non-ferrous materials and cast iron.
| Max Depth of Cut (mm) | 5mm |
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.1496" |
| Overall Length (Inch) | 2.126" |
| Material Code | HM |
| Radial Rake Angle | 9 |
| No of Flute | 3 |
| Flute Helix Angle | 28 |
| Corner Chamfer Angle | 45 |
| Corner Chamfer Width (mm) | 0.08mm |
| Coating | AlCrN |
| Surface Color | Black-Deep Purple |
