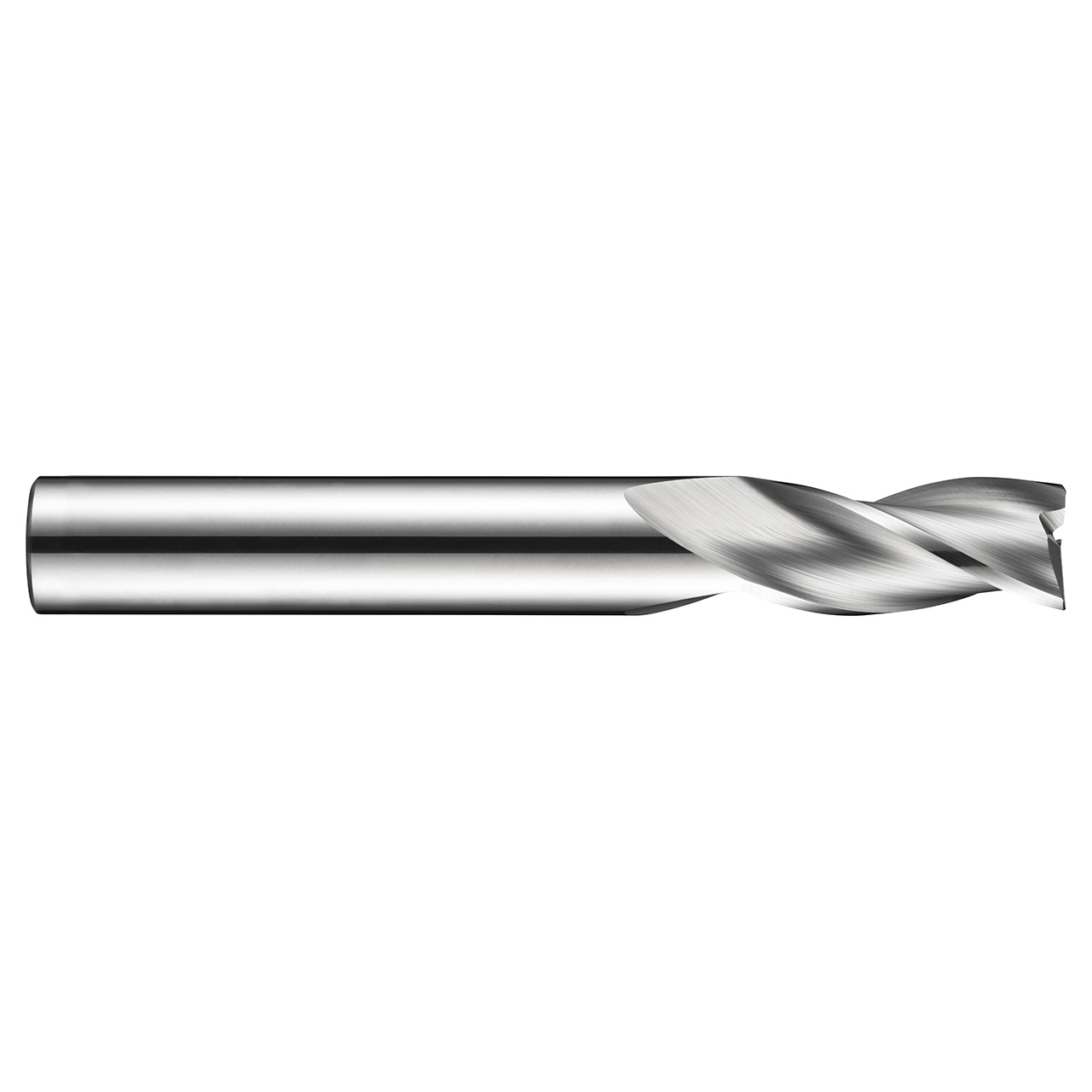

Dormer S90314.0 | 0.5512" Diameter x 3.2677" OAL 3 Flute Bright Coated Square End Mill

$85.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139715
Weight:
5.57 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S903 3-flute slot drills are manufactured from premium carbide material for superior performance and extended tool life. They have a medium length flute design which makes the tool more rigid and suitable for profiling and milling standard slots. The bright finish ensures a cleaner, more accurate result by stopping workpiece material from sticking to the cutting edges of the tool. Suitable for milling steels, cast iron and stainless steels, the tools can be used for plunging, ramping and profile milling. S903 3-flute slot drills are an economical range of cutters and a smart choice for general milling of slots on most types of machine.


Product Specifications
Max Depth of Cut (mm)30mm
Connection Diameter (Inch)0.5512"
Cutting Diameter (Inch)0.5512"
Overall Length (Inch)3.2677"
Material CodeHM
Radial Rake Angle12
No of Flute3
Flute Helix Angle30
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingBright
Surface ColorBright Silver
