Features

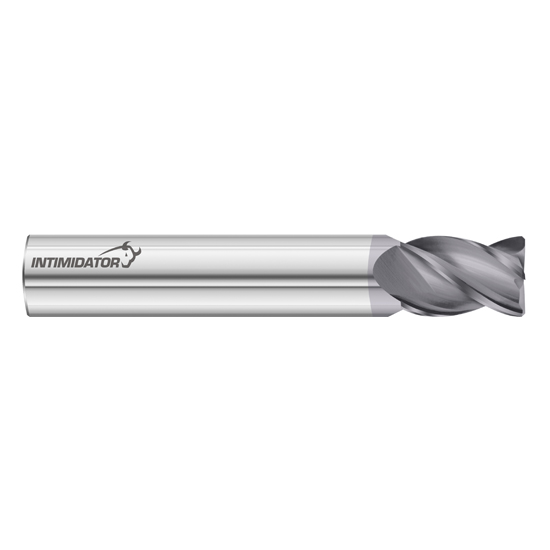

- The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
- The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
- The 3000 Intimidator is stocked with FC-18 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.2500" |
| Cutting Diameter (mm) | 6.35mm |
| Cutting Diameter (Inch) | 1/4" |
| Cutting Flute Length (Decimal Inch) | 0.3750" |
| Cutting Flute Length (mm) | 9.53mm |
| Cutting Flute Length (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Overall Length (Inch) | 2" |
| Coating/Finish | FC18 |
| Metric/Inch | Inch |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 38 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Chamfer |
| End Type Character Designation | C |
| Chamfer Angle (Degrees) | 45 |
| Chamfer Length (Decimal Inch) | 0.0100" |
| Chamfer Length (mm) | 0.25mm |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Stub |
| Length Designator | STB |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Cutter Head Diameter (Inch):
1/4"
Cutter Head Diameter (Decimal Inch):
0.2500"
Cutter Head Diameter (mm):
6.35mm
Included Angle:
45 Degree
Material:
Solid Carbide
Overall Length (Inch):
2"
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Number of Flutes:
4
End Type:
Single End
Series:
3000 Intimidator
Ships:
From Partner Facility
