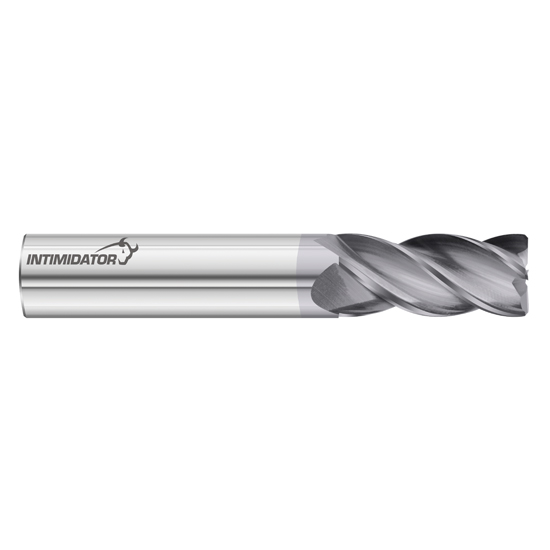

Fullerton Tool 34302 | Intimidator Series 1/4" Diameter, 3/4" Length of Cut, 1/4" Shank, 0.010" Chamfer, 2-1/2" Overall Solid Carbide FC18 Coated Corner Chamfer End Mill

About This Item

Features

• The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
• The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
• The 3000 Intimidator is stocked with FC-18 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.2500"
Cutting Diameter (mm)	6.35mm
Cutting Diameter (Inch)	1/4"
Cutting Flute Length (Decimal Inch)	0.7500"
Cutting Flute Length (mm)	19.05mm
Cutting Flute Length (Inch)	3/4"
Shank Diameter (Decimal Inch)	0.2500"
Shank Diameter (mm)	6.35mm
Shank Diameter (Inch)	1/4"
Overall Length (Decimal Inch)	2.5000"
Overall Length (mm)	63.50mm
Overall Length (Inch)	2-1/2"
Coating/Finish	FC18
Metric/Inch	Inch
Number of Flutes	4
Helix Angle (Degrees)	38
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Chamfer
End Type Character Designation	C
Chamfer Angle (Degrees)	45
Chamfer Length (Decimal Inch)	0.0100"
Chamfer Length (mm)	0.25mm
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Standard
Length Designator	SD
