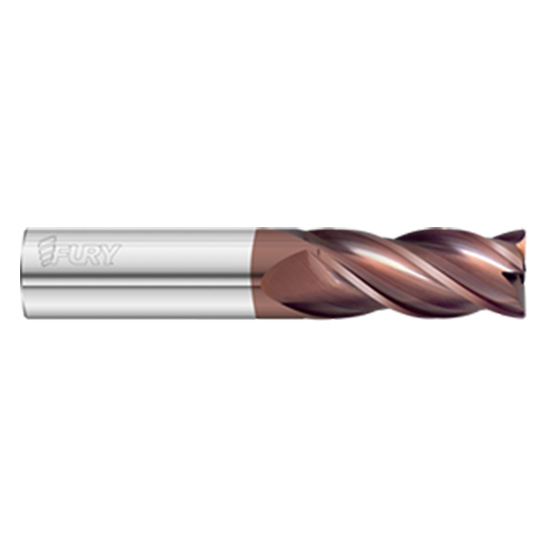

Fullerton Tool 35016 | 1/8" Diameter x 1/8" Shank x 1/2" LOC x 2" OAL 4 Flute FC20 Solid Carbide Square End Mill

$28.07 $17.68
(You save $10.39)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/8"
Number of Flutes:
4
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Shank Diameter (inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Material:
Solid Carbide
Finish/Coating:
FC20
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3500 Fury
Ships:
From Partner Facility
SKU:
25004131
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 35016 | 1/8" Diameter x 1/8" Shank x 1/2" LOC x 2" OAL 4 Flute FC20 Solid Carbide Square End Mill

Features

  • The 3500 Fury is a 4-flute, high performance end mill that excels in stainless steels, super alloys, and titanium
  • It performs exceptionally in high-speed machining and full diameter milling as well as produces excellent surface finishes
  • Its tool versatility results in increased productivity, less tool changes, and longer tool life
  • The 3500 Fury is stocked with FC-20 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.1250"
Cutting Diameter (mm) 3.18mm
Cutting Diameter (Inch) 1/8"
Cutting Flute Length (Decimal Inch) 0.5000"
Cutting Flute Length (mm) 12.70mm
Cutting Flute Length (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (mm) 3.18mm
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish FC20
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
