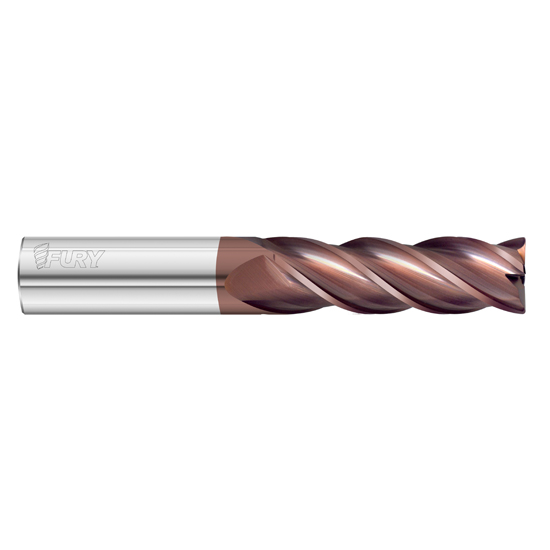

Fullerton Tool 35104 | 3/16" Diameter x 3/16" Shank x 3/4" LOC x 2-1/2" OAL 4 Flute FC20 Solid Carbide Radius End Mill

$39.82 $25.09
(You save $14.73)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/16"
Number of Flutes:
4
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Material:
Solid Carbide
Finish/Coating:
FC20
Single or Double End:
Single
Series:
3500 Fury
Ships:
From Partner Facility
SKU:
25002583
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 35104 | 3/16" Diameter x 3/16" Shank x 3/4" LOC x 2-1/2" OAL 4 Flute FC20 Solid Carbide Radius End Mill

Features

  • The 3500 Fury is a 4-flute, high performance end mill that excels in stainless steels, super alloys, and titanium
  • It performs exceptionally in high-speed machining and full diameter milling as well as produces excellent surface finishes
  • Its tool versatility results in increased productivity, less tool changes, and longer tool life
  • The 3500 Fury is stocked with FC-20 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.1875"
Cutting Diameter (mm) 4.76mm
Cutting Diameter (Inch) 3/16"
Cutting Flute Length (Decimal Inch) 0.7500"
Cutting Flute Length (mm) 19.05mm
Cutting Flute Length (Inch) 3/4"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (mm) 4.76mm
Shank Diameter (Inch) 3/16"
Overall Length (Decimal Inch) 2.5000"
Overall Length (mm) 63.50mm
Overall Length (Inch) 2-1/2"
Coating/Finish FC20
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0100"
Radius (mm) 0.25mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
