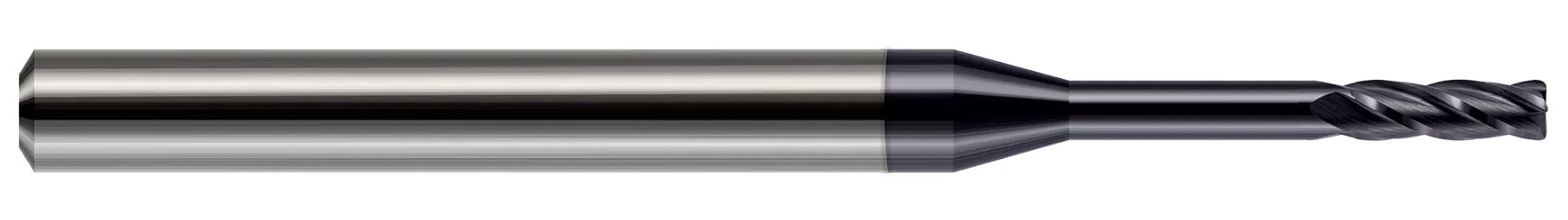

The corner radius profile featured in this collection of Harvey Tool Miniature End Mills - Corner Radius - Stub & Standard adds strength to the tool.
- Corner radius for improved strength
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0930" (3/32) |
| Neck Diameter (Inch) | 0.0915" |
| Length of Cut (Inch) | 0.2790" |
| Overall Reach (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 4 |
| Corner Radius | 0.0300" |
| LOC Multiple | 3x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/32"
Cutter Diameter (Decimal Inch):
0.0930"
Neck Diameter (Decimal Inch):
0.0915"
Length of Cut (Decimal Inch):
0.2790"
Overall Reach (Inch):
1/2"
Overall Reach (Decimal Inch):
0.5000"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Corner Radius (Decimal Inch):
0.0300"
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
