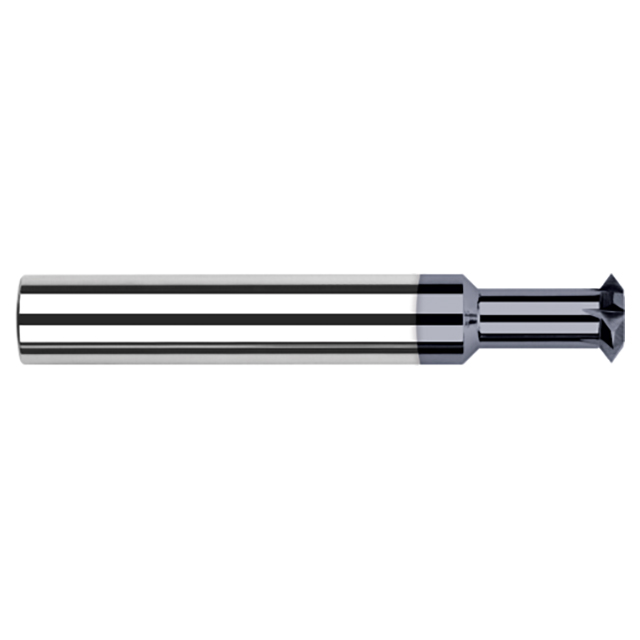

Harvey Tool 830503-C3 | 1/4" Diameter x 0.1790" Width of Cut x 1/4" Shank x 110 Degree Included Angle AlTiN Coated Carbide Angle Cutter

$88.30
Ships:
From Partner Facility
Brand:
Harvey Tool
Included Angle:
110 Degree
Cutting Diameter (Inch):
1/4"
Cutting Diameter (Decimal Inch):
0.2500"
Cutting Width (Decimal Inch):
0.1790"
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Ships:
From Partner Facility
SKU:
25106938
UPC:
Weight:
0.04 LBS
Shipping:
Free Shipping
Product Specifications
Cutter Diameter (Inch) 1/4"
Cutter Diameter (Decimal Inch) 0.2500"
Neck Diameter (Inch) 1/8"
Neck Diameter (Decimal Inch) 0.1250"
Cutter Width (Decimal Inch) 0.1790"
Neck Length (Inch) 5/16"
Neck Length (Decimal Inch) 0.3120"
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Angle per Side 55 Degree
Included Angle 110 Degree
Number of Flutes 4
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Metric (Yes/No) No
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Finish/Coating AlTiN
Double Ended (Yes/No) No
Weldon Flat (Yes/No) No
Coolant Through (Yes/No) No
