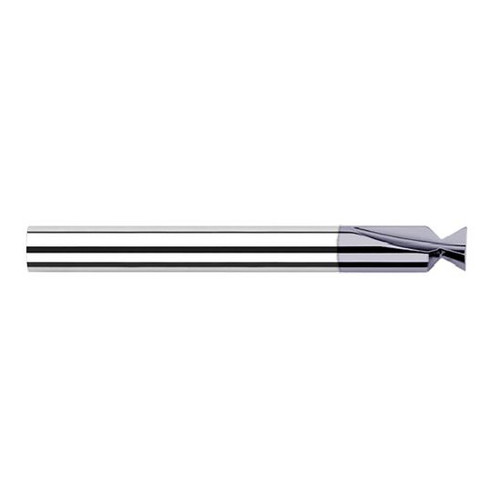

Product Specifications
| Mill Diameter (Decimal Inch) | 0.4375" |
| Mill Diameter (Inch) | 7/16" |
| Neck Diameter (Decimal Inch) | 0.2220" |
| Length Of Cut (Decimal Inch) | 0.1870" |
| Length Of Cut (Inch) | 3/16" |
| Overall Length (Decimal Inch) | 2.7500" |
| Overall Length (Inch) | 2-3/4" |
| Angle Per Side | 30 Degree |
| Included Angle | 60 Degree |
| Number of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (Inch) | 7/16" |
| Metric | No |
| Coating | AlTiN |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle:
60 Degree
Cutting Diameter (Inch):
7/16"
Cutting Diameter (Decimal Inch):
0.4375"
Cutting Width (Inch):
3/16"
Cutting Width (Decimal Inch):
0.1870"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Ships:
From Partner Facility
