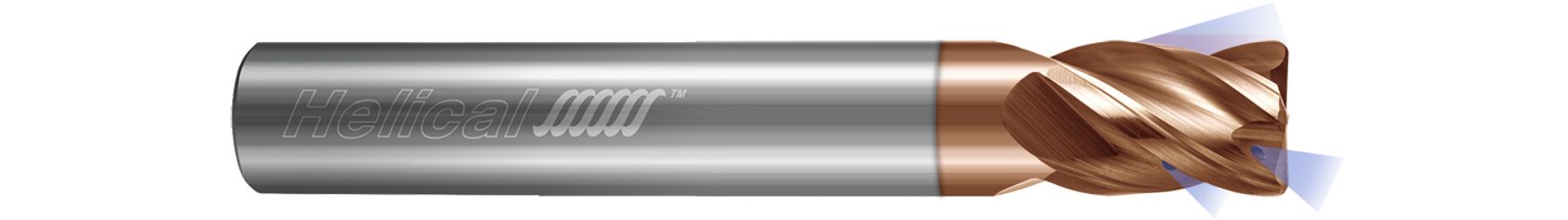

The corner radius profile and variable pitch design of this Helical Solutions 4 Flute End Mill provides optimal performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc.
- Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
- 4 flute variable pitch design for reduced harmonics and increased feed rates
- Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 1.6250" (1-5/8) |
| Overall Length (Inch) | 4" |
| Corner Radius (Inch) | 0.0300" |
| No of Flutes | 4 |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Finish/Coating | TPLUS |
| Center Cutting (Yes/No) | Yes |
| Coolant Through (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.7mm
Number of Flutes:
6
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Finish/Coating:
APLUS
Center Cutting:
Yes
