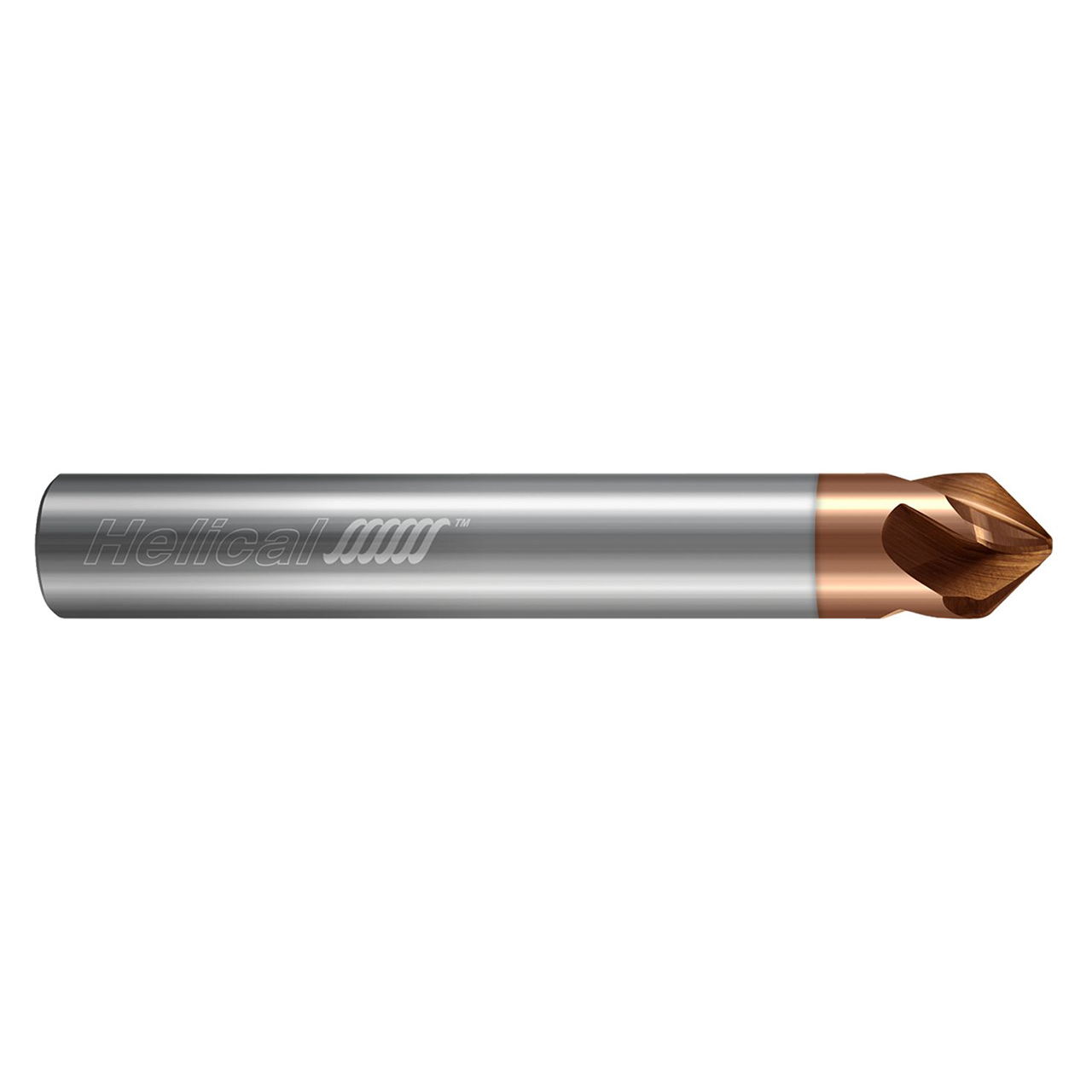

Helical Solutions 86489 | HMAF-FE-40625-08-T30 0.6250" Diameter x 0.6250" Shank x 0.5469" LOC x 3.0000" OAL 4 Flute Tplus Coated Carbide Tapered End Mill

$339.50
Brand:
Helical Solutions
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Length of Cut (Inch):
35/64"
Length of Cut (Decimal Inch):
0.5469"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Corner Radius (Inch):
5/16"
Corner Radius (Decimal Inch):
0.3125"
Radius (Decimal Inch):
20.0000"
Included Angle:
60 Degree
Number of Flutes:
4
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Length (Inch):
2-29/64"
Shank Length (Decimal Inch):
2.4531"
Finish/Coating:
TPLUS
Center Cutting:
Yes
Through Coolant:
No
SKU:
25214900
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Engineered with a specially defined profile, this Oval Form Multi-Axis Finisher reduces cycle times and vastly improves surface finish in semi-finishing and finishing applications of stainless steel, high temperature alloys, and other ferrous materials.

Features:
  • Specially defined profile for massive reductions in cycle time and vastly improved surface finish
  • Oval form with two tangential radii for versatility in angle of approach and clearance in tight spaces
  • 4 flute geometry specifically designed for semi-finishing and finishing in stainless steel, high temperature alloys, and other ferrous materials
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Tool Number86489
Cutter Diameter (Inch)0.6250"
Length of Cut (Inch)0.5469"
Overall Length (Inch)3.0000"
Corner Radius (Inch)0.3125"
Radius (Inch)20.0000"
Tip Radius (Inch)0.0781"
No of Flutes4
LOC Multiple0.8x
Benefit Multiple8x
Shank Diameter (Inch)0.6250"
Shank Length (Inch)2.4531"
CoatingTplus
