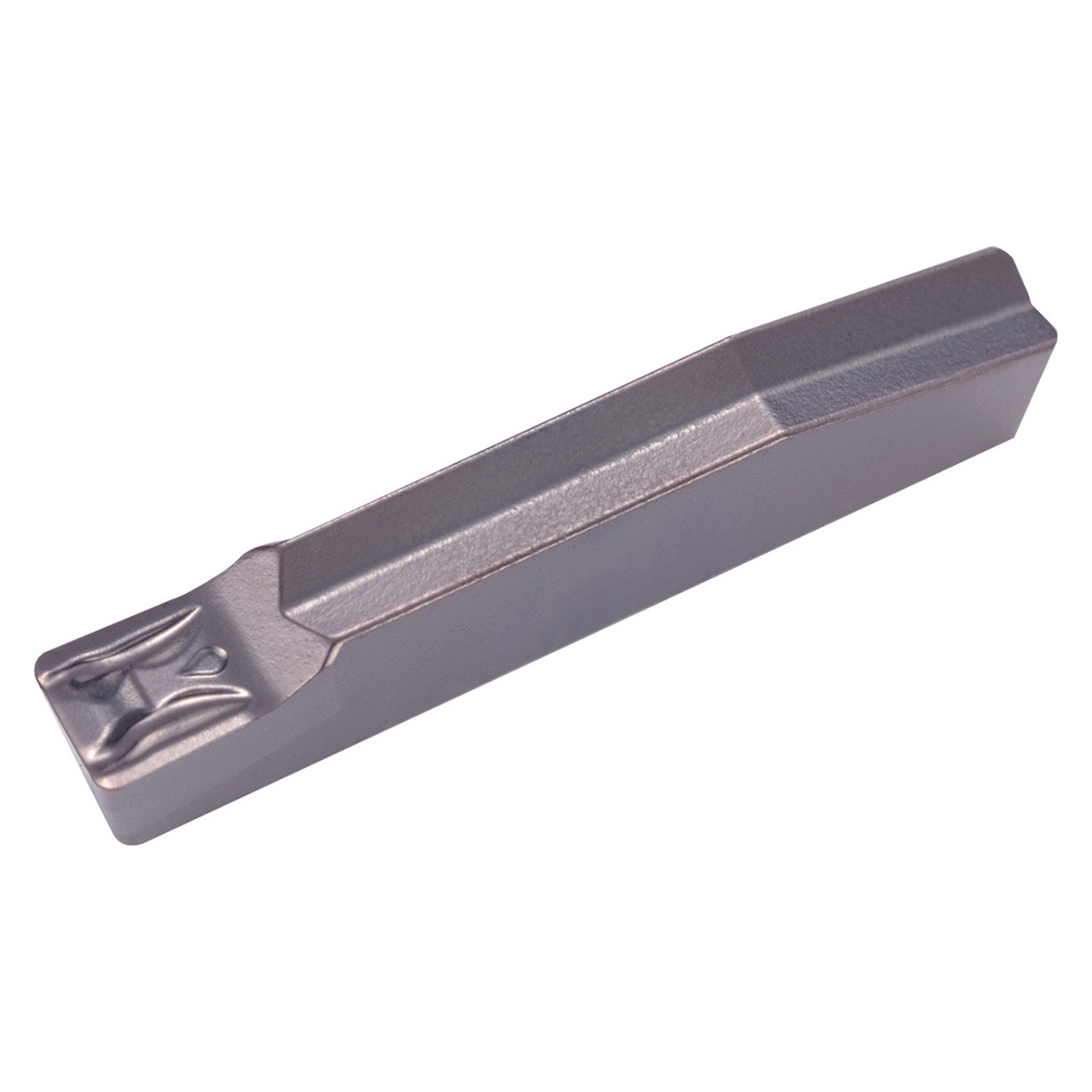

Kyocera Precision Tools TKE10616 | GDMS4020N040GM PR1225 0.1575" Cutting width x 0.7874" Insert Length PVD Coated Carbide Grooving Insert

$13.95
Brand:
Kyocera Precision Tools
Insert Style:
GDMS
Insert Size:
4020
Material:
Carbide;Cutting Width (Decimal Inch)=0.1575"""
Cutting Width (mm):
4.00mm
Maximum Depth of Cut (Decimal Inch):
1.0039"
Maximum Depth of Cut (mm):
25.50mm
Manufacturer's Grade:
PR1225
Finish/Coating:
PVD
SKU:
23238169
Weight:
0.12 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving, traversing
  • General Purpose / 1-edge
  • 1 Cutting edge
  • Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
  • Application: Light interrupted to interrupted cutting of stainless steel

Product Specifications
Tool NumberTKE10616
Max Depth of Cut (Decimal Inch)1.0039"
Max Depth of Cut (mm)25.50mm
Cutting Width (Decimal Inch)0.1575"
Cutting Width (mm)4.00mm
Cutting Width Minimum (Decimal Inch)0.1575"
Cutting Width Minimum (mm)4.00mm
Cutting Width Maximum (Decimal Inch)0.1575"
Cutting Width Maximum (mm)4.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationExternal Grooving | Traversing
ChipbreakerGM
Coating ProcessPVD
Coolant Through (Yes/No)PVD
Cutting RangeMedium Roughing
HandNeutral
Insert Holding MethodClamp
Insert GradePR1225
Insert Size4020
MaterialCarbide
Number of Cutting Edges1
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
