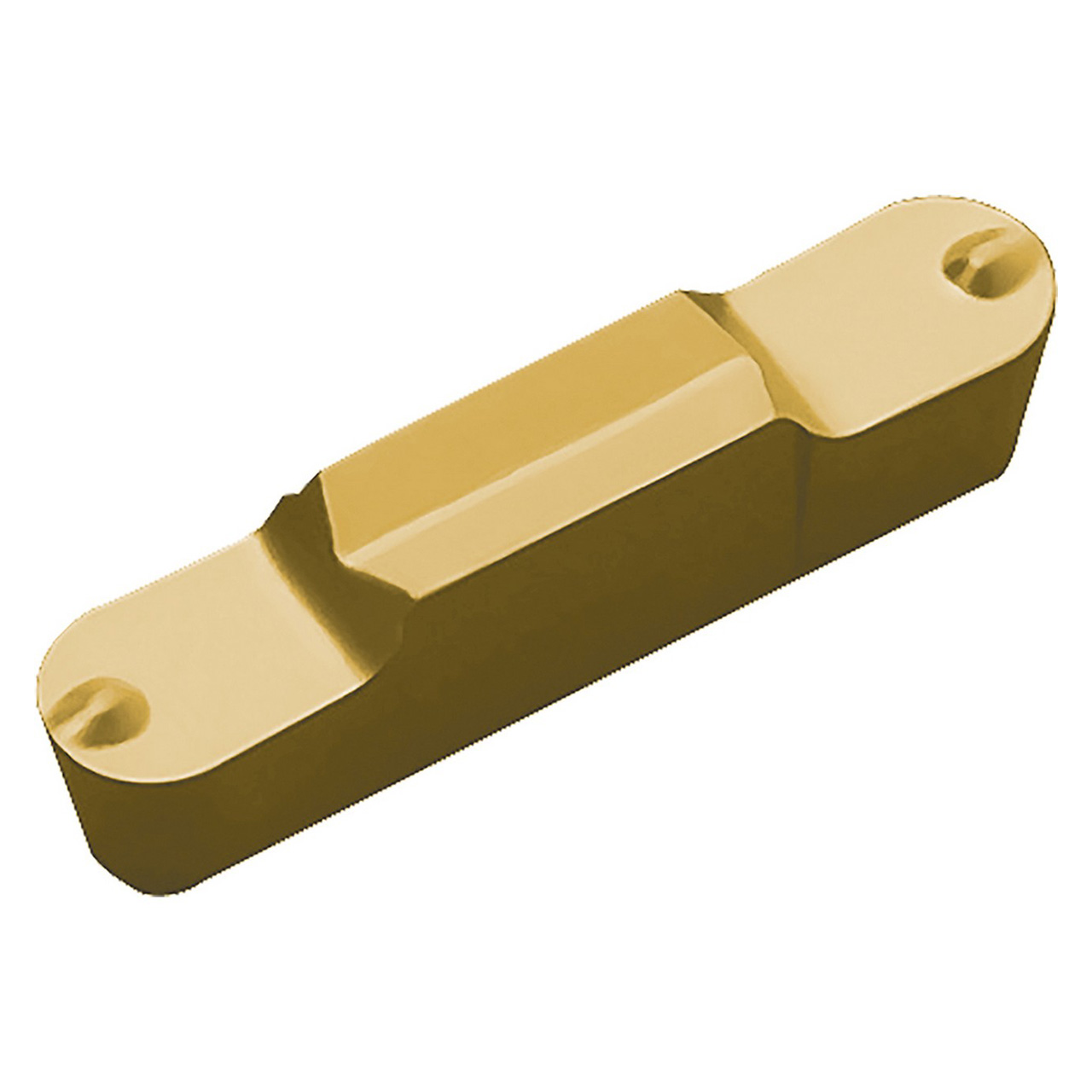

Features:
- Insert for grooving, external grooving, face grooving, Full-R, copying
- Chip control oriented/M class/Full-R/copying
- 2 Cutting edges
- Improved toughness and stability due to specialized carbide substrate with plastic deformation resistance
- Application: Cut-off, grooving and multi-function cutting of steel
Product Specifications
| Tool Number | TKW12250 |
| Max Depth of Cut (Decimal Inch) | 0.7874" |
| Max Depth of Cut (mm) | 20.00mm |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.059" |
| Corner Radius (mm) | 1.50mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | Copying | External Grooving | Face Grooving |
| Chipbreaker | R |
| Coating Process | CVD |
| Cutting Range | Finishing Medium |
| Full Radius | Yes |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | CR9025 |
| Insert Size | 3020150 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GMG
Insert Size:
3020150
Material:
Carbide;Cutting Width (Decimal Inch)=0.1181"
Cutting Width (mm):
3.00mm
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20.00mm
Manufacturer's Grade:
CR9025
Finish/Coating:
CVD
interval quantity:
10
