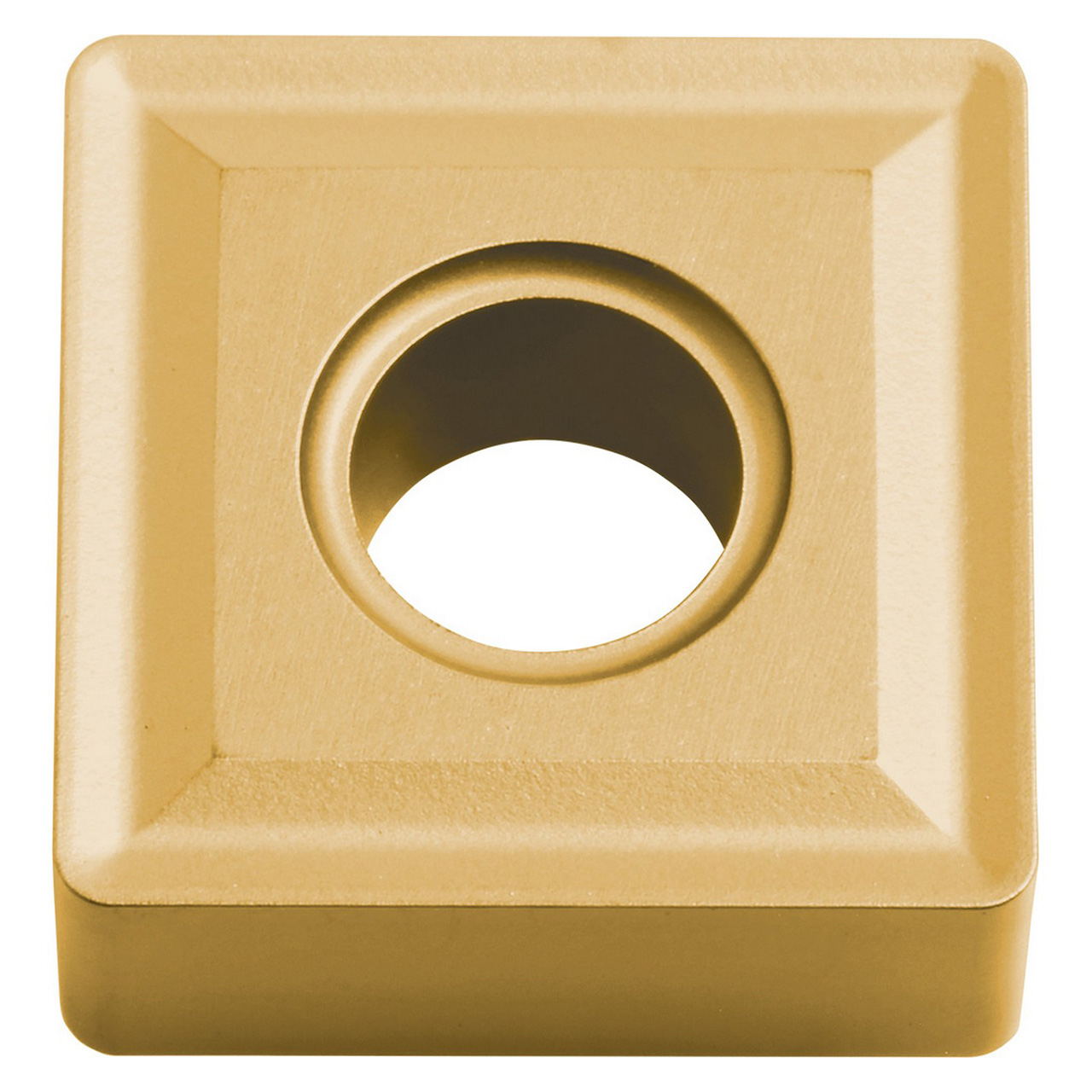

Kyocera Precision Tools TLP00255 | SNMG432 PV730 1/2" Circle Diameter x 3/16" Thickness PVD Coated Cermet Indexable Turning Insert

$8.03
Brand:
Kyocera Precision Tools
Insert Style:
SNMG
Insert Size:
432
Material:
Cermet;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
PV730
SKU:
23246276
Weight:
0.13 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, chamfering, boring
  • 8 Cutting edges
  • Heavy interruption and roughing of (P) carbon/alloy Steel

Product Specifications
EDP NumberTLP00255
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBoring | Chamfering | External Turning | Facing
Coating ProcessPVD
Cutting RangeRoughing
HandNeutral
Insert GradePV730
Insert Holding MethodScrew or Clamp
Insert Shape90 Degree Square
Insert Included Angle ( Degree)90 Degree
Insert Size432
MaterialCermet
Number of Cutting Edges8
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationHeavy Interruption

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Style:
SNMG
Insert Size:
432
Material:
Cermet;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
PV730
