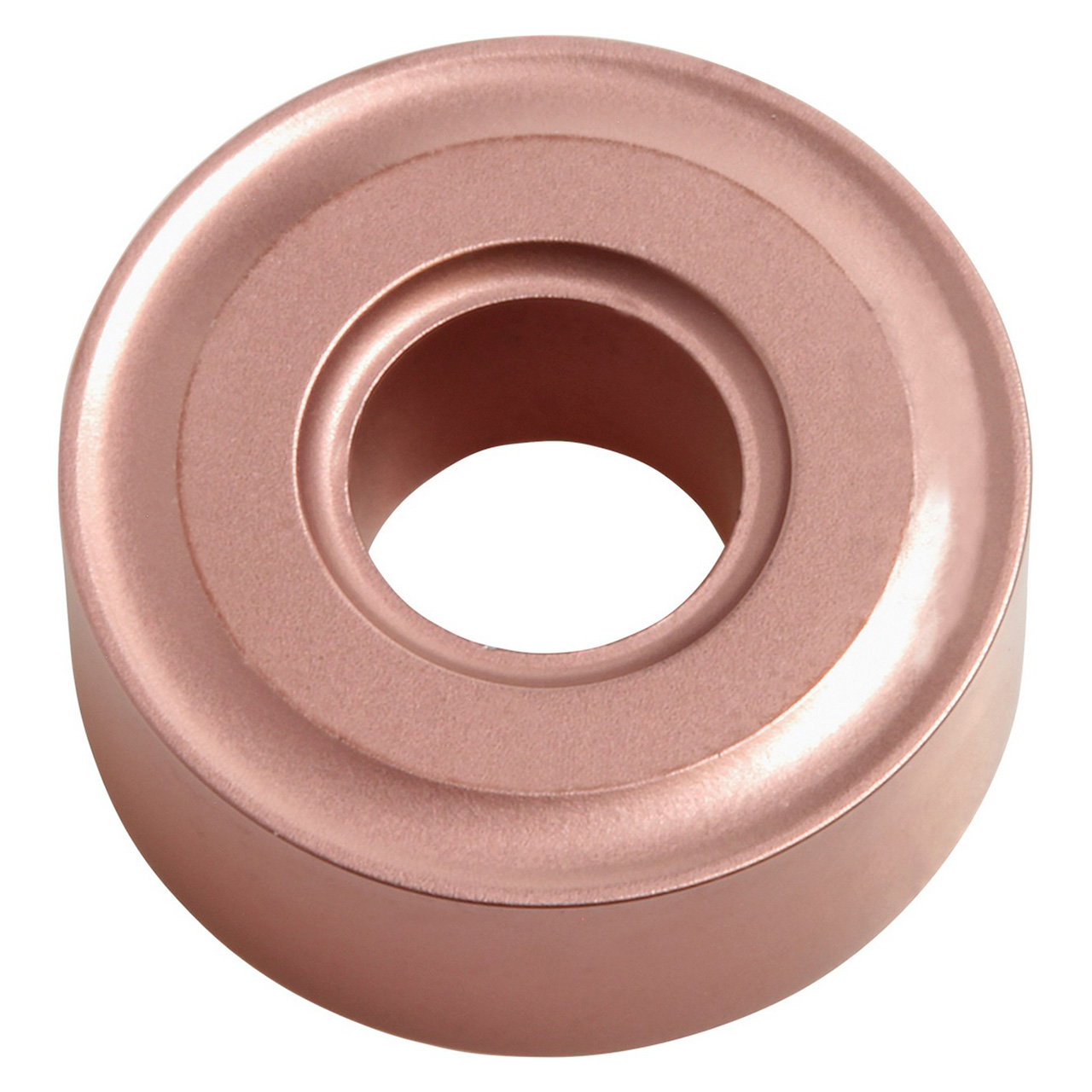

Kyocera Precision Tools TMD04431 | RNMG43 CA315 1/2" Circle Diameter x 3/16" Thickness CVD Coated Carbide Indexable Turning Insert

$11.00
Brand:
Kyocera Precision Tools
Insert Style:
RNMG
Insert Size:
43
Material:
Carbide;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Manufacturer's Grade:
CA315
SKU:
23247023
Weight:
0.21 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, undercutting
  • Without chipbreaker with excellent performance for machining gray and nodular cast iron by optimizing the total coating layer thickness
  • First choice for continuous to interrupted machining of nodular cast iron

Product Specifications
EDP NumberTMD04431
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationExternal Turning | Facing | Undercutting
Coating ProcessCVD
Cutting RangeMedium Roughing
HandNeutral
Insert GradeCA315
Insert Holding MethodScrew or Clamp
Insert ShapeRound
Insert Size43
MaterialCarbide
Primary Workpiece MaterialGray Cast Iron (K)|(K) Nodular Cast Iron
Usage ClassificationLight Interruption

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Style:
RNMG
Insert Size:
43
Material:
Carbide;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Manufacturer's Grade:
CA315
