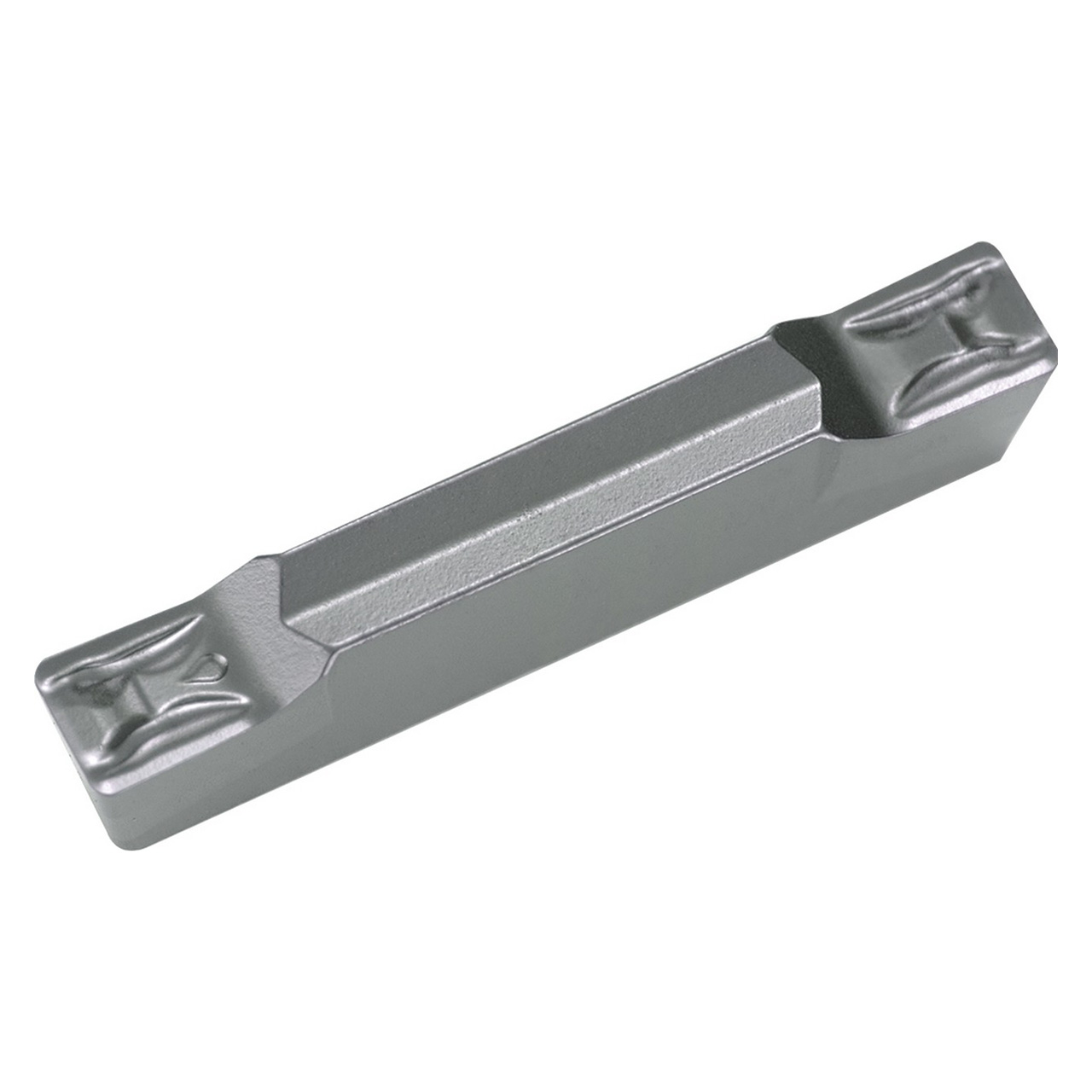

Kyocera Precision Tools TSO10562 | GDM6020N040GM TN90 0.2362" Cutting width x 0.7874" Insert Length Uncoated Cermet Grooving Insert

$31.45 $18.24
(You save $13.21)
Brand:
Kyocera Precision Tools
Insert Style:
GDM
Insert Size:
6020
Material:
Cermet;Cutting Width (Decimal Inch)=0.2362"
Cutting Width (mm):
6.00mm
Maximum Depth of Cut (Decimal Inch):
1.1811"
Maximum Depth of Cut (mm):
30.00mm
Manufacturer's Grade:
TN90
Finish/Coating:
Uncoated
interval quantity:
10
SKU:
23249990
UPC:
Weight:
0.11 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Features:

  • Insert for external grooving, traversing
  • General Purpose / 2-edge
  • 2 Cutting edges
  • Cermet with great surface finish eliminates many secondary operations
  • Application: For grooving and cut-off of steel

Product Specifications
Tool NumberTSO10562
Max Depth of Cut (Decimal Inch)1.1811"
Max Depth of Cut (mm)30.00mm
Cutting Width (Decimal Inch)0.2362"
Cutting Width (mm)6.00mm
Cutting Width Minimum (Decimal Inch)0.2362"
Cutting Width Minimum (mm)6.00mm
Cutting Width Maximum (Decimal Inch)0.2362"
Cutting Width Maximum (mm)6.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationExternal Grooving | Traversing
ChipbreakerGM
Coating ProcessUncoated
Cutting RangeFinishing Medium
HandNeutral
Insert Holding MethodClamp
Insert GradeTN90
Insert Size6020
MaterialCermet
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
