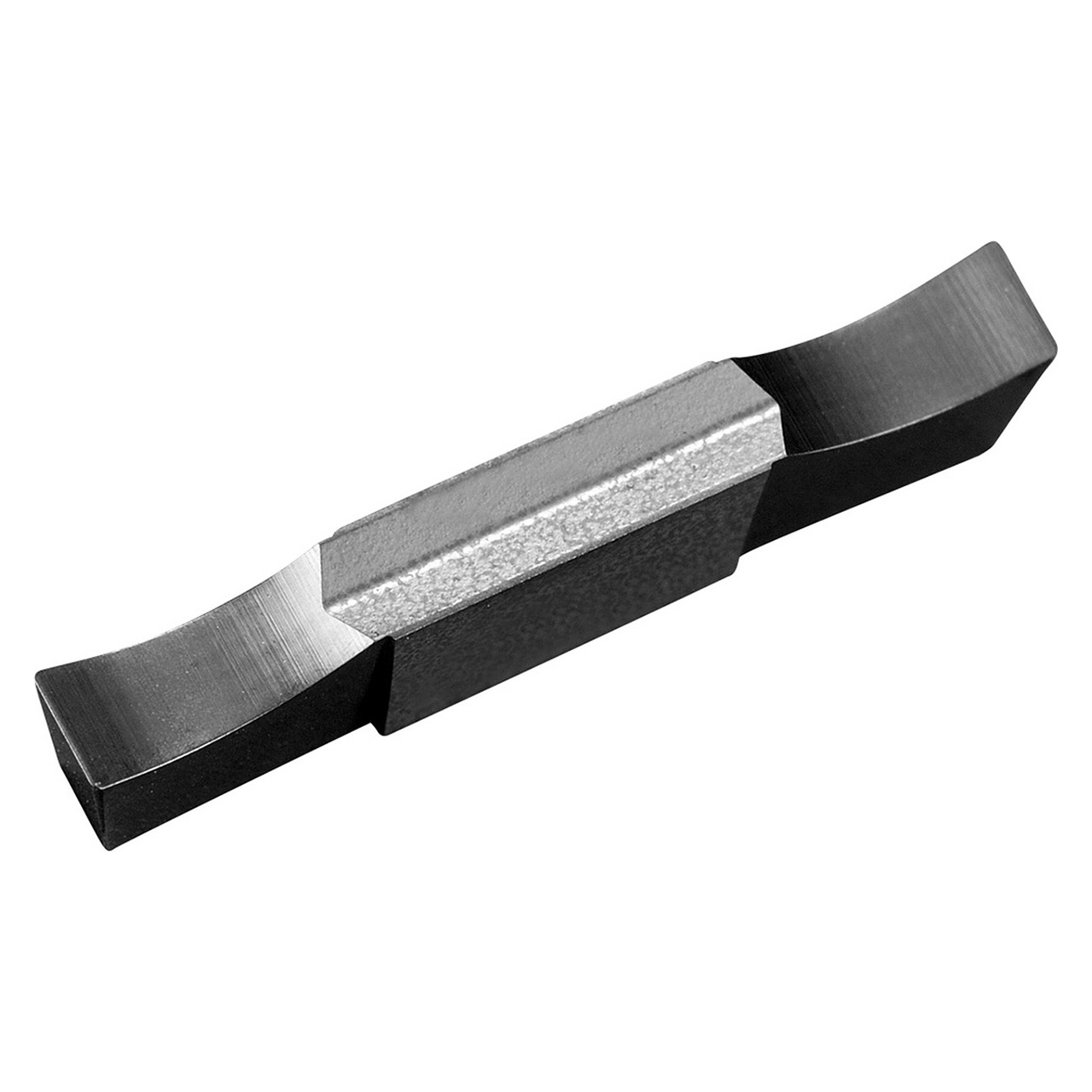

Kyocera Precision Tools TSO10729 | GDG4020N040GS TN90 0.1575" Cutting width x 0.7874" Insert Length Uncoated Cermet Grooving Insert

$17.29
Brand:
Kyocera Precision Tools
Insert Style:
GDG
Insert Size:
4020
Material:
Cermet;Cutting Width (Decimal Inch)=0.1575"""
Cutting Width (mm):
4.00mm
Maximum Depth of Cut (Decimal Inch):
1.0039"
Maximum Depth of Cut (mm):
25.50mm
Manufacturer's Grade:
TN90
Finish/Coating:
Uncoated
SKU:
23250001
Weight:
0.07 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • Low Cutting Force / 2-edge
  • 2 Cutting edges
  • Cermet with great surface finish eliminates many secondary operations
  • Application: For grooving and cut-off of steel

Product Specifications
Tool NumberTSO10729
Max Depth of Cut (Decimal Inch)1.0039"
Max Depth of Cut (mm)25.50mm
Cutting Width (Decimal Inch)0.1575"
Cutting Width (mm)4.00mm
Cutting Width Minimum (Decimal Inch)0.1575"
Cutting Width Minimum (mm)4.00mm
Cutting Width Maximum (Decimal Inch)0.1575"
Cutting Width Maximum (mm)4.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationExternal Grooving
ChipbreakerGS
Coating ProcessUncoated
Cutting RangeFinishing Medium
HandNeutral
Insert Holding MethodClamp
Insert GradeTN90
Insert Size4020
MaterialCermet
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
