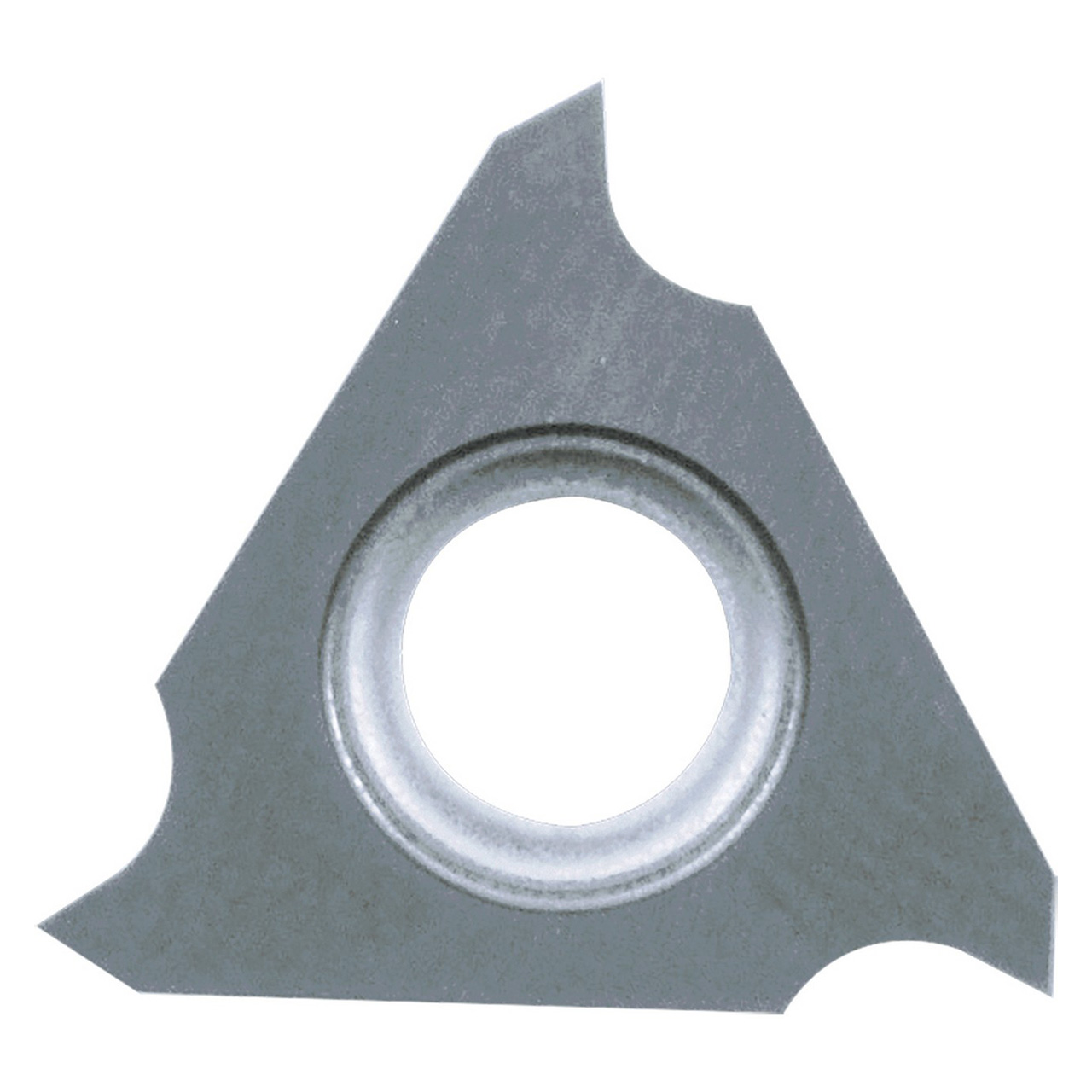

Features:
- Insert for external grooving
- 3 Cutting edges
- ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
- Application: High wear resistance and toughness for non-ferrous materials, and non-metals, and titanium alloys
Product Specifications
| Tool Number | TWG19932 |
| Max Depth of Cut (Decimal Inch) | 0.1063" |
| Max Depth of Cut (mm) | 2.70mm |
| Cutting Width (Decimal Inch) | 0.0571" |
| Cutting Width (mm) | 1.45mm |
| Cutting Width Minimum (Decimal Inch) | 0.0571" |
| Cutting Width Minimum (mm) | 1.45mm |
| Cutting Width Maximum (Decimal Inch) | 0.0571" |
| Cutting Width Maximum (mm) | 1.45mm |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | External Grooving |
| Chipbreaker | F |
| Coating Process | Uncoated |
| Cutter Pitch | PVD |
| Cutting Range | Medium Roughing |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | GW15 |
| Insert Size | 145 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Gray Cast Iron (K) | Non-Ferrous Materials (N) | Heat-Resistant Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GBF
Insert Size:
145
Material:
Carbide;Cutting Width (Decimal Inch)=0.0571"""
Cutting Width (mm):
1.45mm
Maximum Depth of Cut (Decimal Inch):
0.1063"
Maximum Depth of Cut (mm):
2.70mm
Manufacturer's Grade:
GW15
Finish/Coating:
Uncoated
