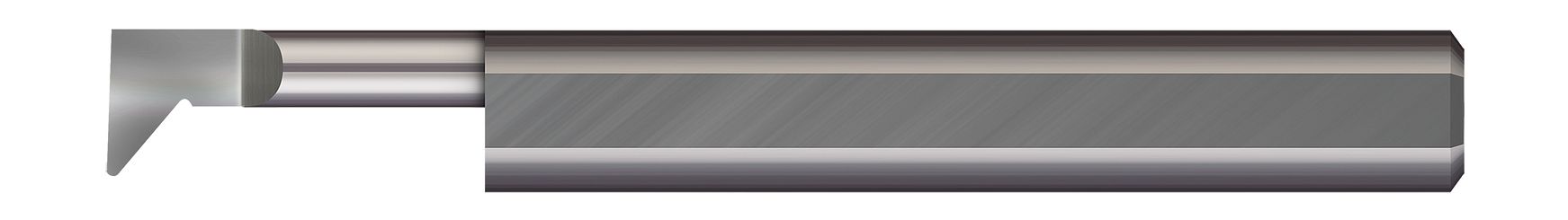

Micro 100 PR8-260750X | 0.2820" Minimum Bore Diameter x 0.750" Maximum Bore Depth x 0.008" Radius 5/16" Shank x 2-1/2" OAL AlTiN Coated Carbide Boring Bar

$51.00 $47.79
(You save $3.21)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10233297
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
PR8-260750X

This Micro 100 solid carbide Radial Profiling Tool is also an excellent choice for fine finishing, and can even be used in thread relief applications.

  • Designed for radial profiling
  • Excellent choice for fine finishing
  • Can be used in thread relief applications
  • Split geometry makes the tool as rigid as possible
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2820"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0900"
Shank Diameter (Inch) 0.3125" (5/16)
Centerline Offset (Inch) 0.1038"
Corner Radius (Inch) 0.008"
Neck Diameter (Inch) 0.1700"
Overall Length (Inch) 2.50" (2-1/2)
