Product Specifications
| Manufacturer Part Number | QIAT2-1000-16 |
| Minimum Bore Diameter (Decimal Inch) | 0.187" |
| Minimum Bore Diameter (Inch) | 3/16" |
| Head Width (Decimal Inch) | 0.165" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.000" |
| Maximum Bore Depth (Inch) | 1" |
| Projection (Decimal Inch) | 0.045" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Centerline Offset | 0.0400" |
| Offset (Decimal Inch) | 0.035" |
| Flat Width (Decimal Inch) | 0.021" |
| Length from Holder (Decimal Inch) | 1.353" |
| Neck Diameter (Decimal Inch) | 0.120" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Thread Per Inch | 16 TPI |
| Coating | Uncoated |

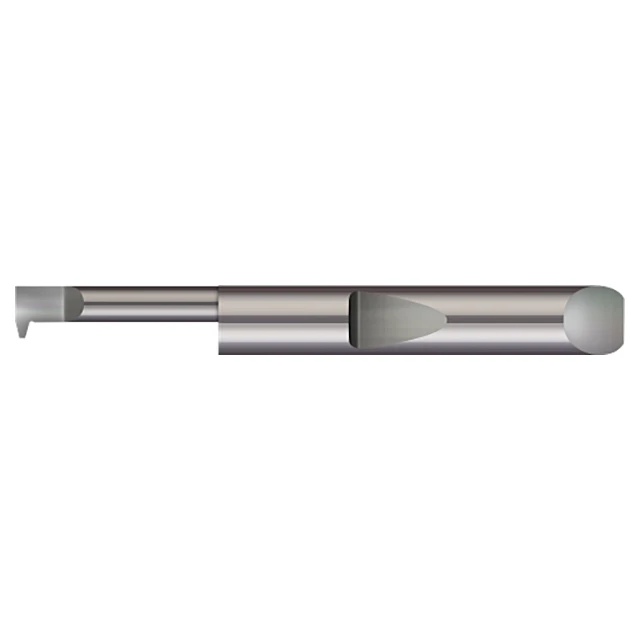

| Product Type | Quick Change Threading Tool - ACME Thread |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Inch):
3/16"
Minimum Bore Diameter (Decimal Inch):
0.1870"
Minimum Bore Diameter (mm):
4.75mm
Head Width (Inch):
16/97"
Head Width (Decimal Inch):
0.1650"
Head Width (mm):
4.19mm
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.0000"
Maximum Bore Depth (Inch):
25.40mm
Projection (Inch):
4/89"
Projection (Decimal Inch):
0.0450"
Projection (mm):
1.14mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
Uncoated
interval quantity:
1
