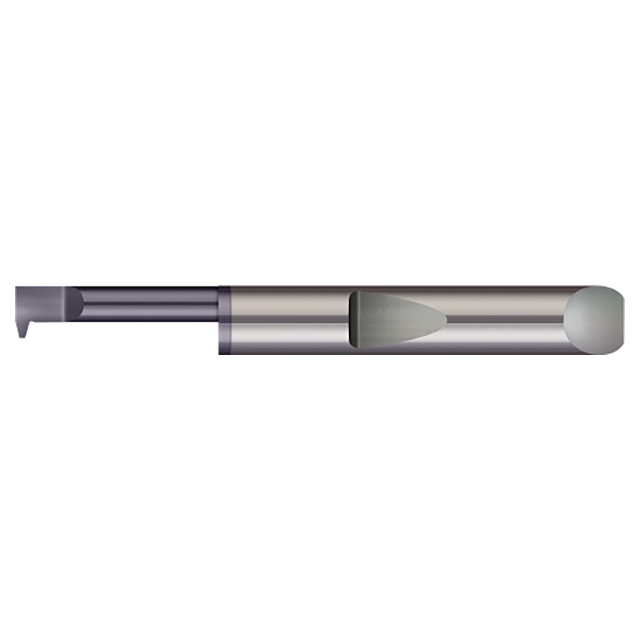

| Manufacturer Part Number | QIAT2-1000-16X |
| Minimum Bore Diameter (Decimal Inch) | 0.187" |
| Minimum Bore Diameter (Inch) | 3/16" |
| Head Width (Decimal Inch) | 0.165" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.000" |
| Maximum Bore Depth (Inch) | 1" |
| Projection (Decimal Inch) | 0.045" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Centerline Offset | 0.0400" |
| Offset (Decimal Inch) | 0.035" |
| Flat Width (Decimal Inch) | 0.021" |
| Length from Holder (Decimal Inch) | 1.353" |
| Neck Diameter (Decimal Inch) | 0.120" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Thread Per Inch | 16 TPI |
| Coating | AlTiN |
| Product Type | Quick Change Threading Tool |
