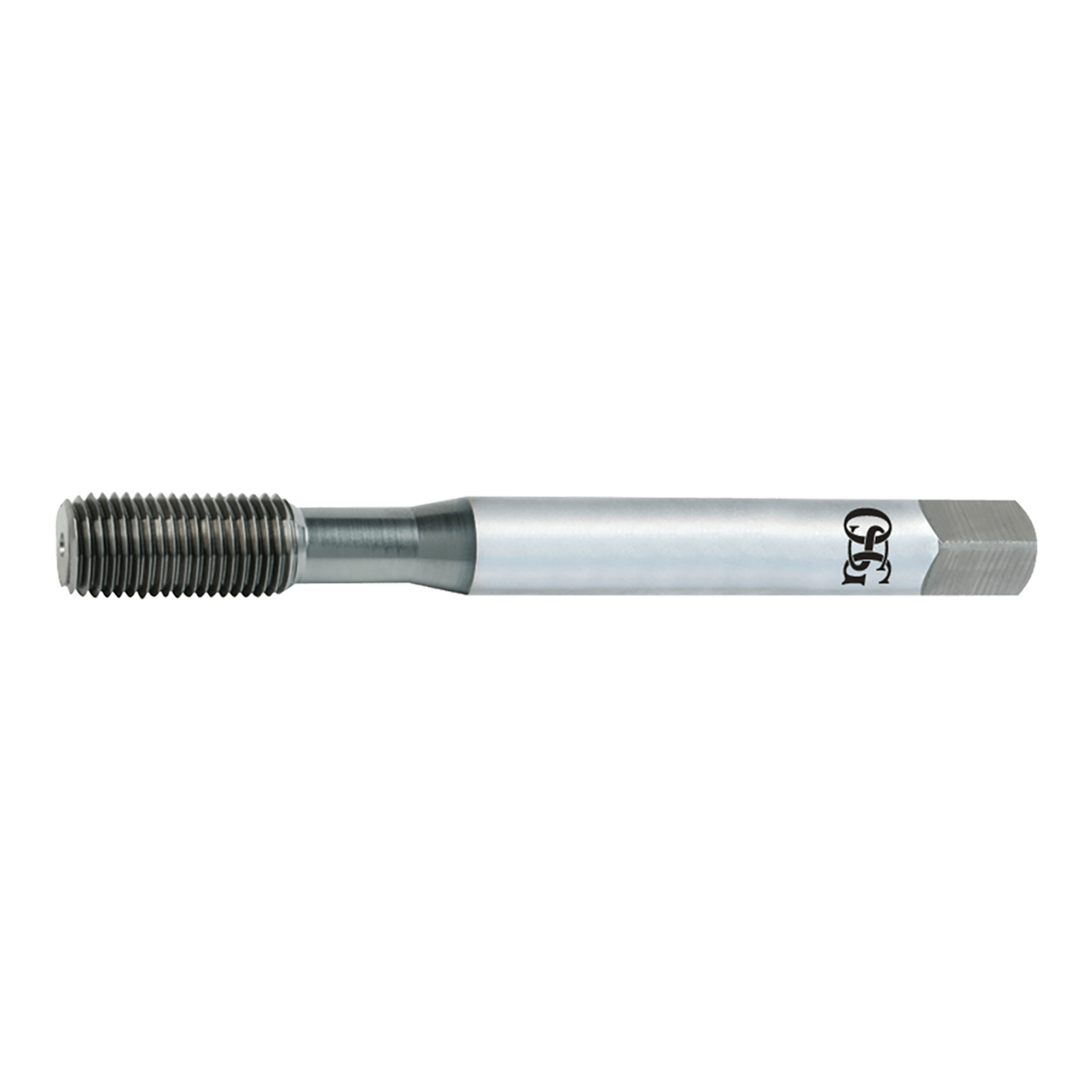

HY-PRO NRT Taps Performance Form Taps for Materials < 32Rc
Product Specifications
| Manufacturer Part Number | 1400157105 |
| Chamfer Length (Decimal Inch) | 0.063" |
| Major Diameter (Decimal Inch) | 0.190" |
| Neck Length (Decimal Inch) | 0.866" |
| Overall Length (Decimal Inch) | 2.375" |
| Shank Diameter (Decimal Inch) | 0.194" |
| Square Length (Decimal Inch) | 0.250" |
| Square Width (Decimal Inch) | 0.152" |
| Maximum Tap Drill Size (Decimal Inch) | 0.173" |
| Minimum Tap Drill Size (Decimal Inch) | 0.169" |
| Thread Length (Decimal Inch) | 0.492" |
| Thread Size Number | No. 10 |
| Coating | TiN |
| Material | HSS-CO |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (Decimal Inch):
2.3750"
Shank Diameter (Decimal Inch):
0.1940"
Material:
HSS-CO
Finish/Coating:
TiN
Cutting Direction:
Right Hand
Neck Length (Decimal Inch):
0.8660"
Square Length (Decimal Inch):
0.2500"
Thread Length (Decimal Inch):
0.4920"
Chamfer Length (Decimal Inch):
0.0630"
interval quantity:
1
