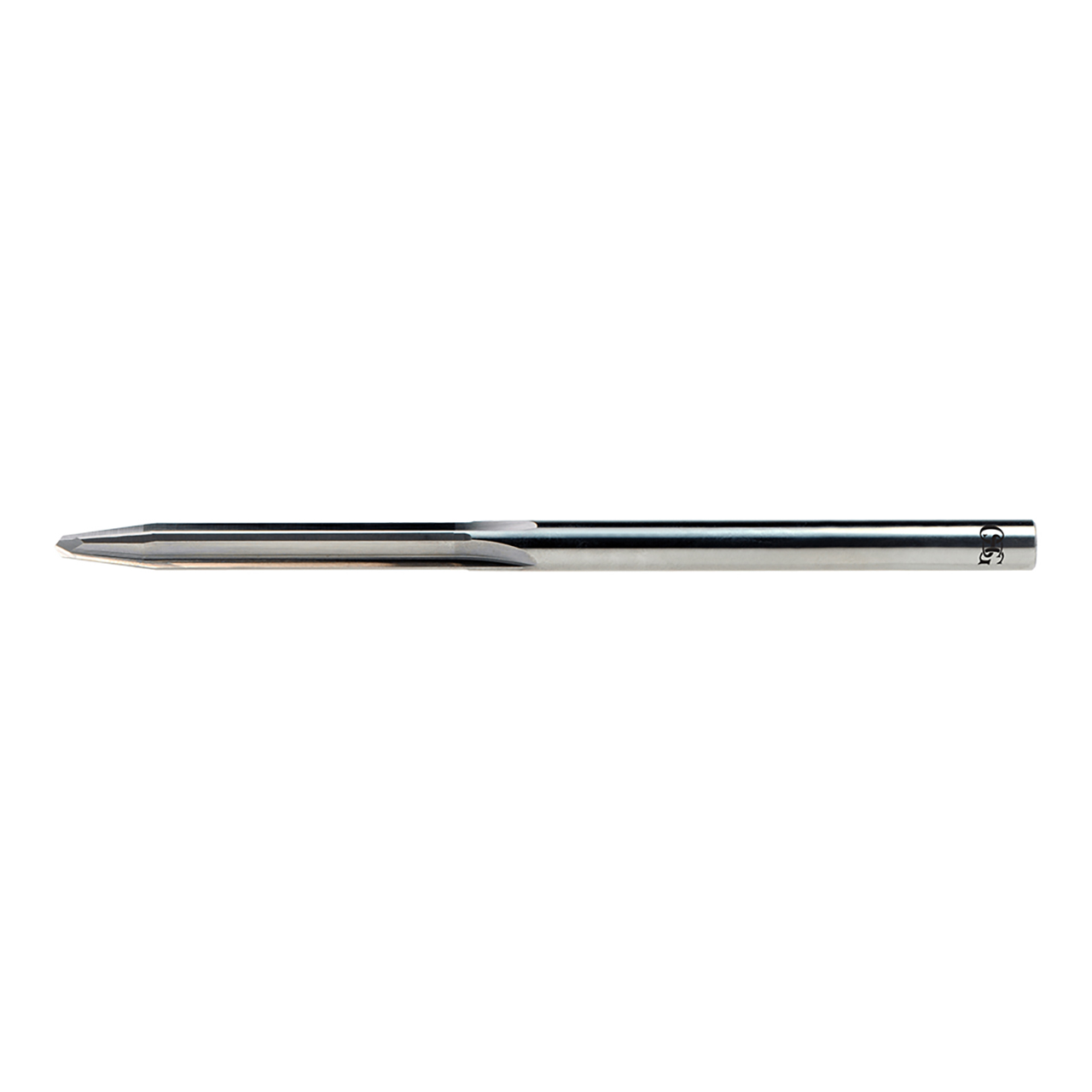

The Carbide AERO-D-REAM is a high performance Tapered drill/reamer for composites.
Features & Benefits:
- Straight Flute: Limits peel-up at Hole entrance
- Elongated double-angle geometry: Reduces thrust and limits exit delamination
- Ultra-fine micrograin carbide: Smaller grain size yields improved Wear Resistance and better coating adhesion properties for extended tool life
Product Specifications
| Manufacturer Part Number | 257-3438 |
| Cutting Diameter Tolerance (Decimal Inch) | +0.0005 / -0" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 11/32" |
| Diameter (Decimal Inch) | 0.344" |
| Diameter (mm) | 8.73mm |
| Flute Length (mm) | 50.80mm |
| List Name | AERO-D-REAM |
| Number of Flutes | 4 |
| Overall Length (mm) | 101.60mm |
| Shank Diameter (mm) | 8.73mm |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | Bright |
| Taper Length (mm) | 17.20mm |
| Product Type | Chucking Reamer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Cutting Direction:
Right Hand
Diameter (Inch):
11/32"
Diameter (Decimal Inch):
0.3440"
Diameter (mm):
8.73mm
Flute Length (mm):
50.80mm
Number of Flutes:
4
Overall Length (mm):
101.60mm
Shank Diameter (mm):
8.73mm
Material:
Carbide
Finish/Coating:
Bright
Taper Length (mm):
17.20mm
interval quantity:
1
