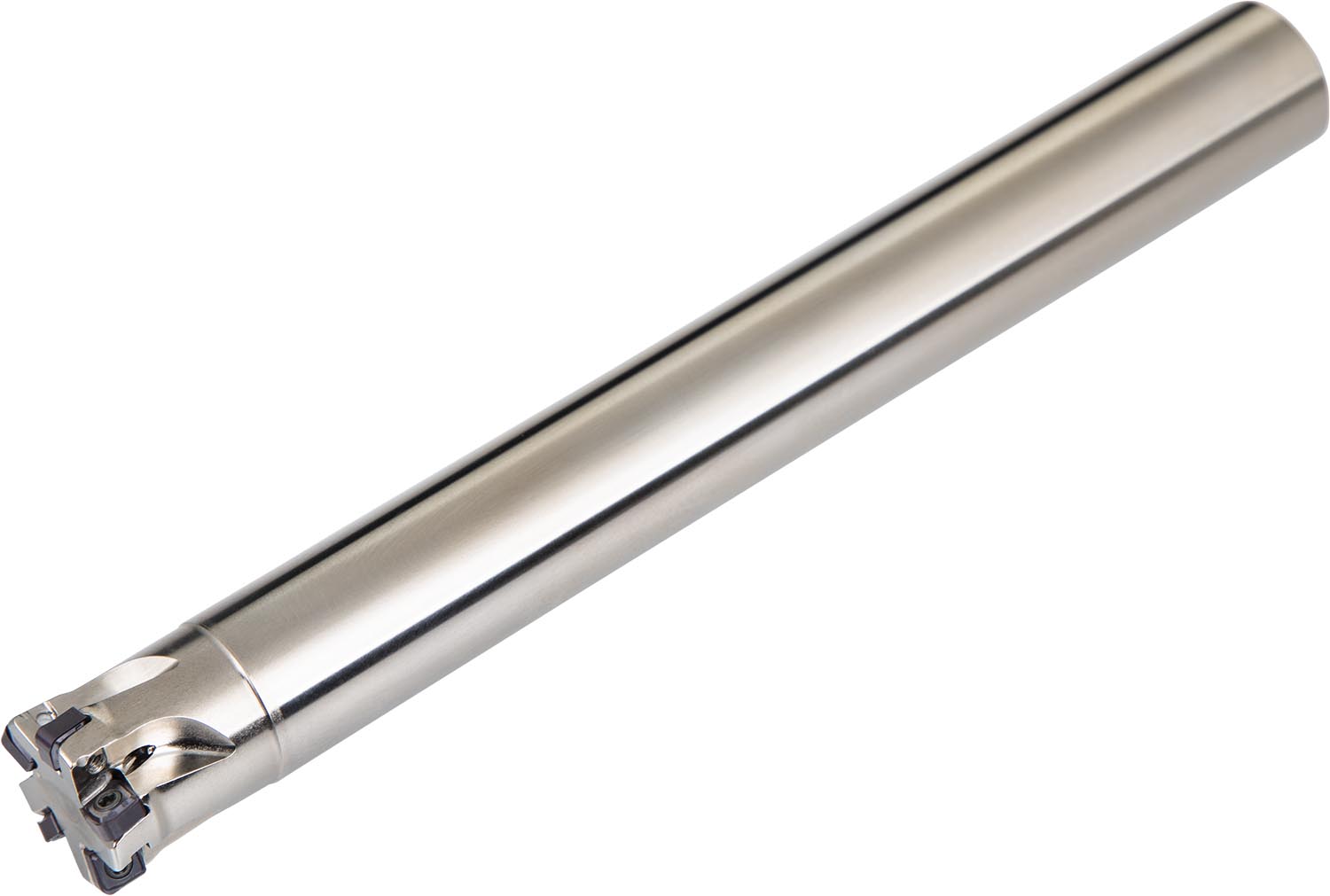

Copy face mill with double negative geometry which utilises 5 off CNHX 0502.. double-sided inserts, cutting diameter 20 mm with 93° approach angle and 18 mm parallel shank according to DIN 1835A, 20 mm functional and 160 mm overall length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5 mm.
Product Specifications
| EDP Number | 7636578 |
| Peripheral Effective Cutting Edge Count | 5 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7.5 |
| Radial Rake Angle | -12.7 |
| Max Rotational Speed | 37700 |
| Connection Diameter (mm) | 18 mm |
| Connection Diameter (Inch) | 0.709" |
| Cutting Diameter (mm) | 20 mm |
| Cutting Diameter (Inch) | 0.787" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 20 mm |
