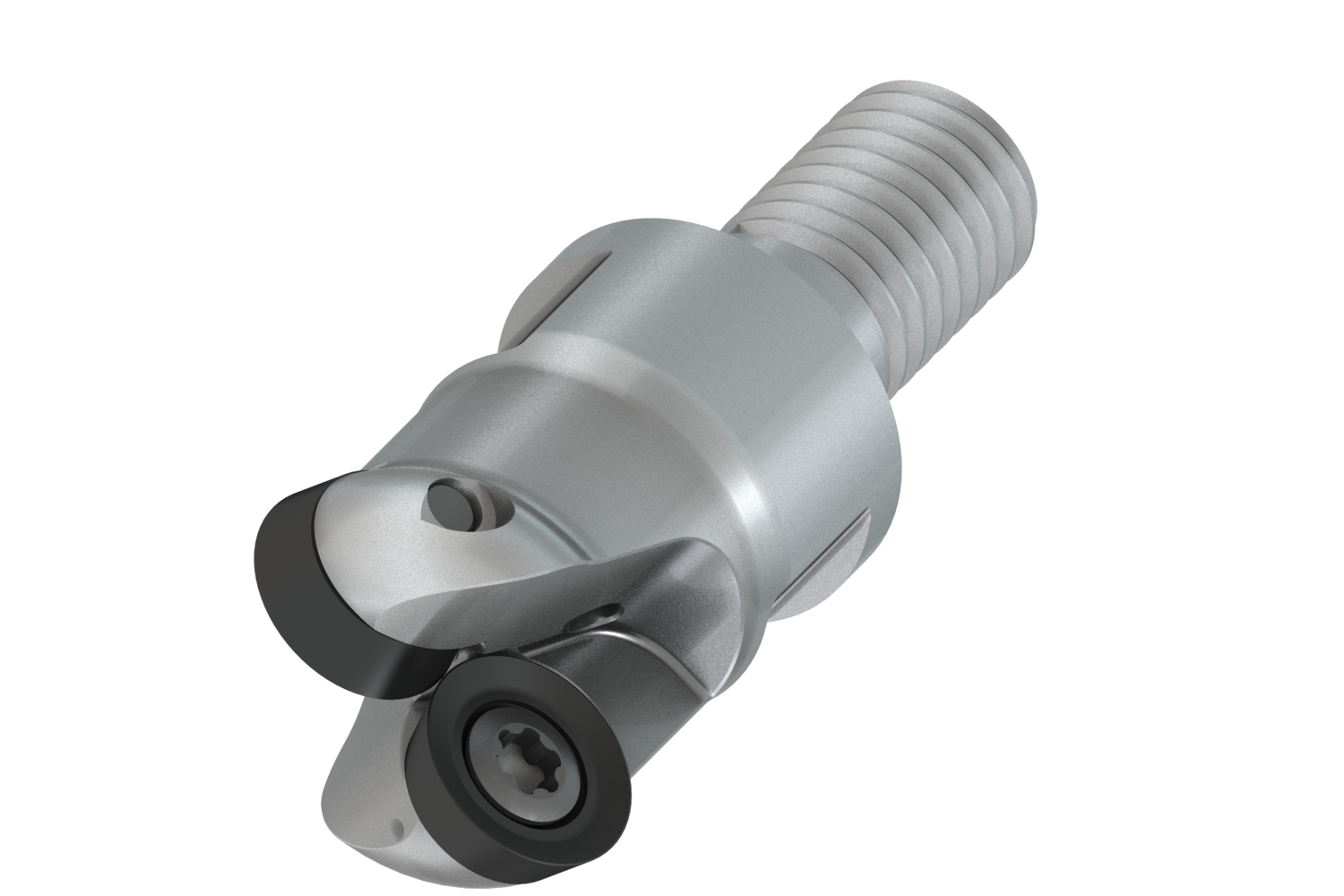

Pramet 20E2R028M10-SRD10-CF | 10 mm Diameter x 28 mm Functional Length Indexable Copy Face Mill

$164.00
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
1
SKU:
23144630
Weight:
2.54 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Copy face mill with double negative geometry which utilises 2 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 20 mm with M10 threaded shank for standard modular tool-holders, 28 mm functional and 47 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2.5 mm.

Product Specifications
EDP Number7999252
Peripheral Effective Cutting Edge Count2
Insert Index Count2
Maximum Depth of Cut (mm)2.5 mm
Coolant Supply Property1
Axial Rake Angle0
Radial Rake Angle-2
Max Rotational Speed30800
Connection Diameter (mm)10.5 mm
Connection Diameter (Inch)0.413"
Hub Diameter (mm)18 mm
Cutting Diameter (mm)10 mm
Max Cutting Diameter (mm)20 mm
Cutting Diameter (Inch)0.394"
Overall Length (mm)
Overall Length (Inch)
Functional Length (mm)28 mm
Thread Diameter SizeM10
