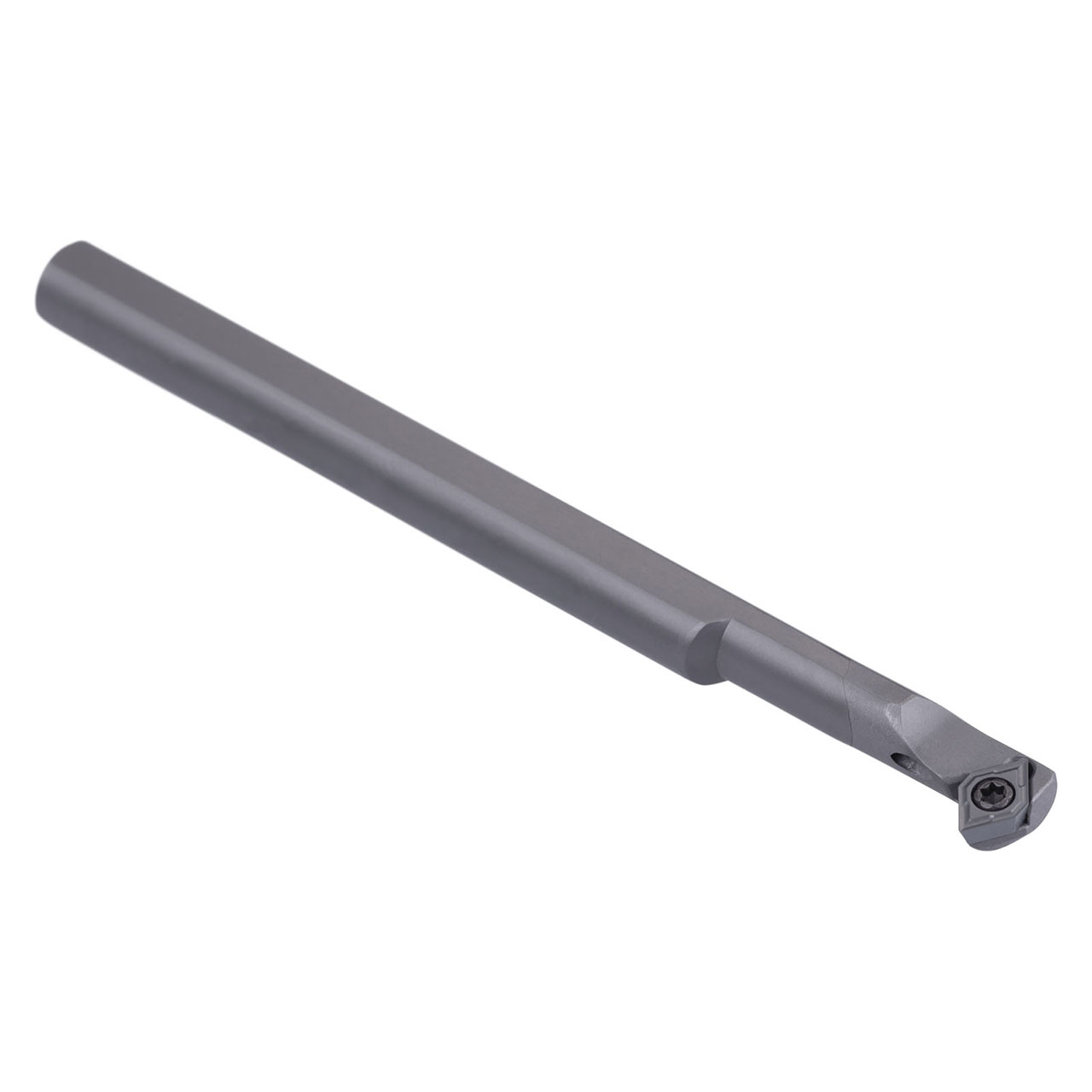

Screw clamp boring bar for holding a 75 Degree rhombus positive insert with an inscribed circle diameter of 5.56 mm, 2.38 mm thick (ISO designation EP.. 0502.. ), left hand special tool style, carbide with coolant hole, 6 mm diameter x 100 mm long for taper boring, single and multi-directional copy boring and back chamfering.
Product Specifications
| EDP Number | 6760772 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 8 mm |
| Connection Diameter (Inch) | 0.315" |
| Minimum Bore Diameter (mm) | |
| Body Diameter (mm) | 6 mm |
| Body Diameter (Inch) | 0.236" |
| Functional Length (mm) | 100 mm |
| Head Length (mm) | 28 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
interval quantity:
1
