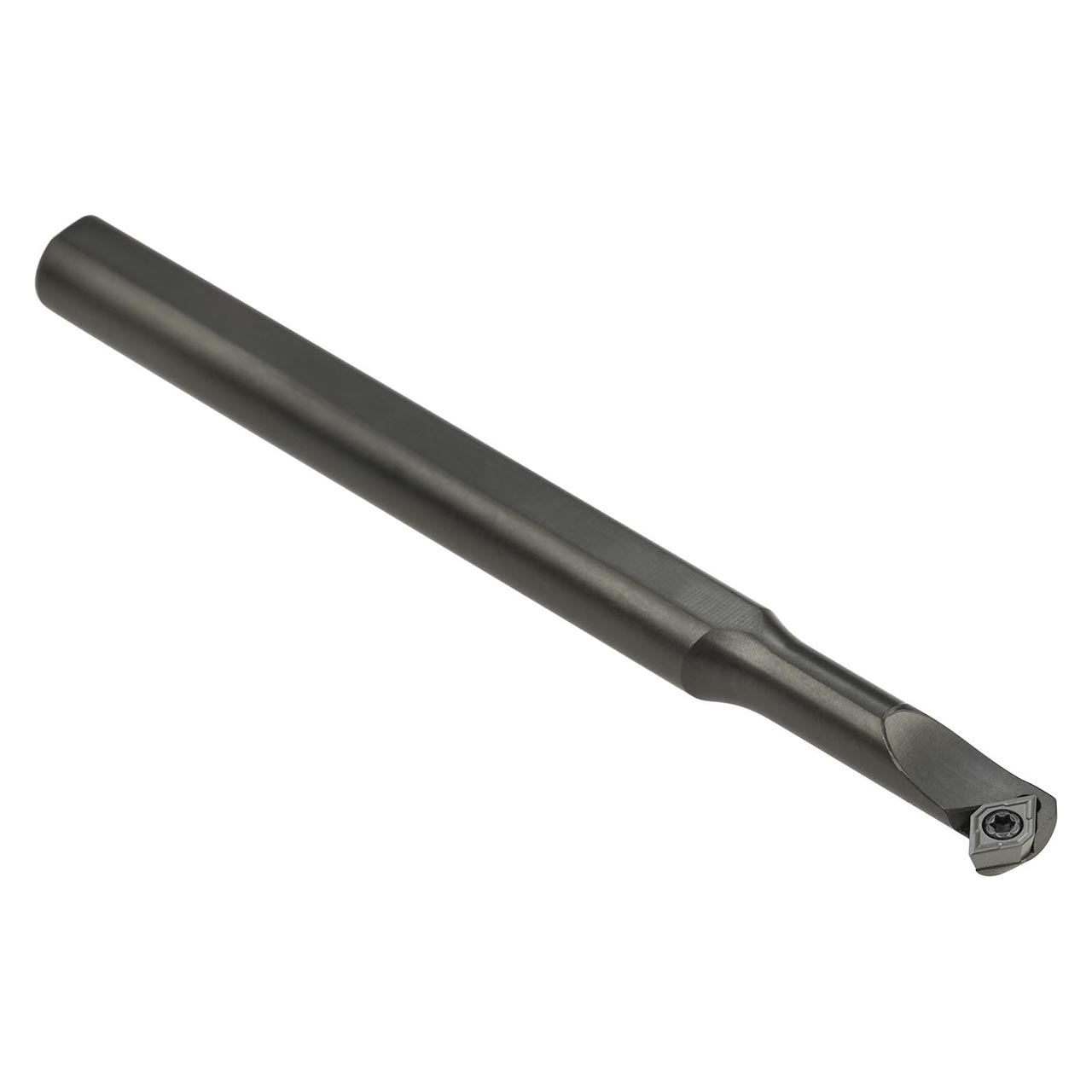

Screw clamp boring bar for holding a 75 Degree rhombus positive insert with an inscribed circle diameter of 5.56 mm, 2.38 mm thick (ISO designation EP.. 0502.. ), left hand special tool style, steel without coolant hole, 10 mm diameter x 125 mm long for taper boring, single and multi-directional copy boring and back chamfering.
Product Specifications
| EDP Number | 6760471 |
| Functional Width (mm) | |
| Axial Rake Angle | -5 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 12 mm |
| Connection Diameter (Inch) | 0.472" |
| Minimum Bore Diameter (mm) | |
| Body Diameter (mm) | 10 mm |
| Body Diameter (Inch) | 0.394" |
| Functional Length (mm) | 125 mm |
| Head Length (mm) | 32 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
