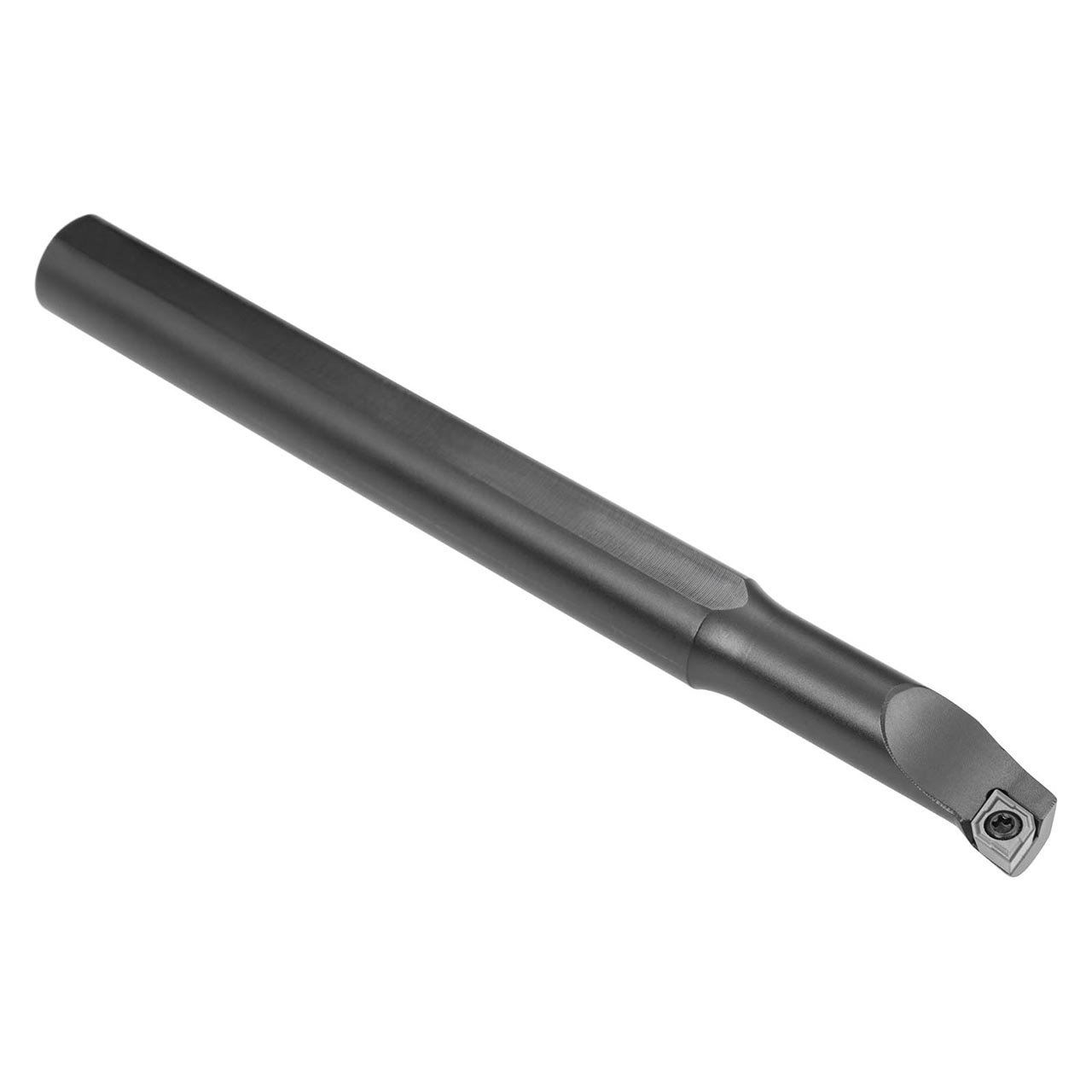

Screw clamp boring bar for holding a 75 Degree rhombus positive insert with an inscribed circle diameter of 5.56 mm, 2.38 mm thick (ISO designation EP.. 0502.. ), left hand 95 Degree side and end cutting with off-set shank, steel without coolant hole, 10 mm diameter x 125 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760469 |
| Functional Width (mm) | |
| Inclination Angle | -5 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 12 mm |
| Connection Diameter (Inch) | 0.472" |
| Minimum Bore Diameter (mm) | |
| Body Diameter (mm) | 10 mm |
| Body Diameter (Inch) | 0.394" |
| Functional Length (mm) | 125 mm |
| Head Length (mm) | 32 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
