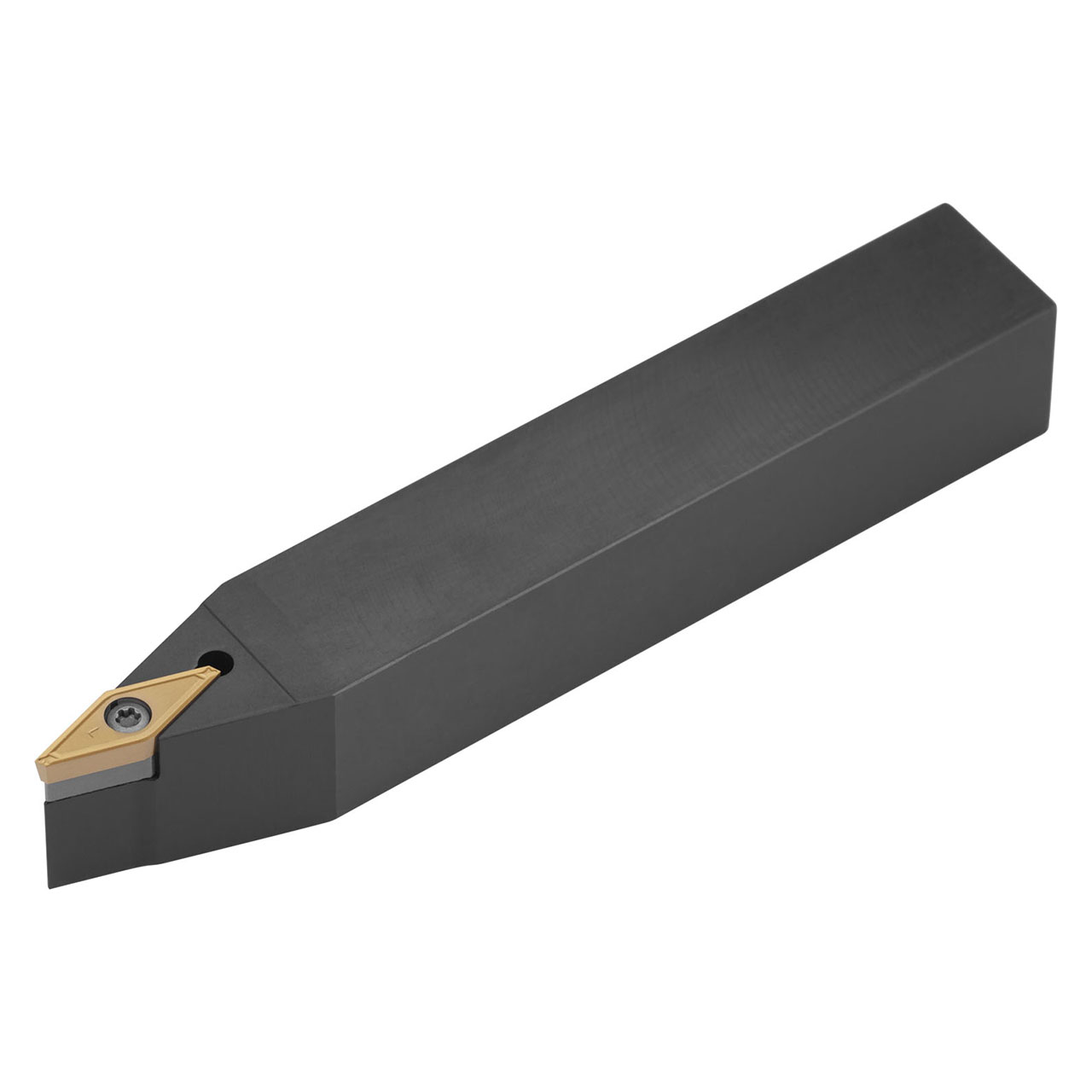

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 1/4'', 1/8'' thick (ANSI designation VB.. 22. ), neutral hand 72°30' side cutting with straight shank, 1/2'' tool height x 1/2'' width x 3.1/2'' long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6788696 |
| Functional Height (Inch) | 0.5" |
| Functional Width (Inch) | 0.26" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (Inch) | 0.5" |
| Shank Width (Inch) | |
| Functional Length (Inch) | 3.5" |
| Head Length (Inch) | 0.831" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
1/2"
Shank Width (Decimal Inch):
0.5000"
Shank Width (mm):
12.7mm
Shank Height (Inch):
1/2"
Shank Height (Decimal Inch):
0.5000"
Shank Height (mm):
12.7mm
