Features:
- Accurate to ± 0.0001

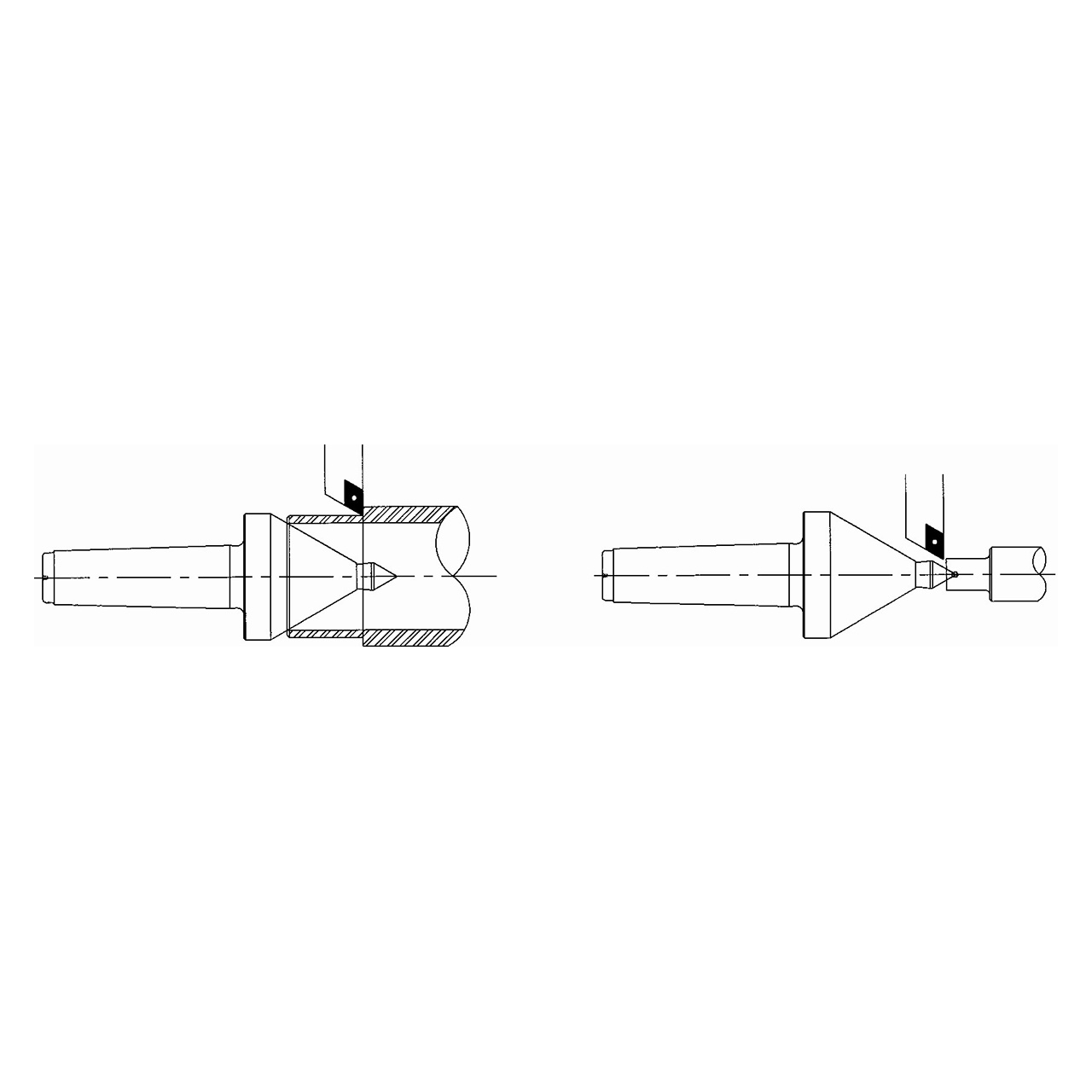

- Great for manual lathe applications

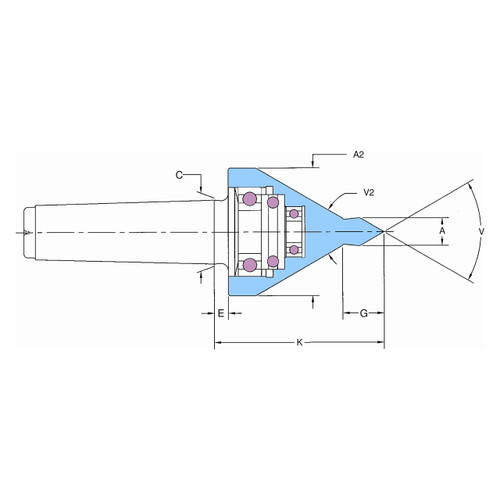

Product Specifications
| # MFG | 60223 |
| Taper | 3 Morse |
| Accuracy | ± 0.0001 |
| Gage Line to Point (Inch) | 3.188" |
| Max Workpiece Weight (lbs) | 330 lbs. |
| Max RPM | 5000 |
| Gage Line to Back of Head (Inch) | 0.250" |
| Small - Point Diameter (Inch) | 0.500" |
| Large - Point Diameter (Inch) | 2.250" |
| Gage Line Diameter (Inch) | 0.938" |
| Point to Angle (Inch) | 0.750" |
| Series | Multi-Use Live Center |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
interval quantity:
1
