Product Specifications

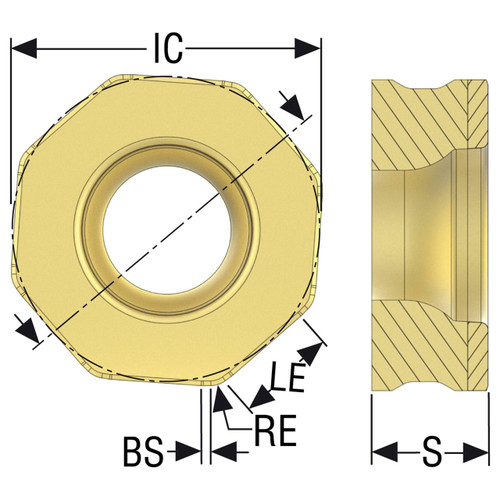

| Manufacturer Part Number | 02457208 |
| Fixing Hole Diameter (Decimal Inch) | 0.177" |
| Fixing Hole Diameter (mm) | 4.50mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Wiper Edge Length (Decimal Inch) | 0.297" |
| Wiper Edge Length (mm) | 7.53mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.150" |
| Cutting Edge Effective Length (mm) | 3.81mm |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Clearance Angle Major (Degree) | 20 Degree |
| Cutting Edge Condition Code | T |
| Cutting Edge Count | 2 |
| Pocket Seat Code of The Cutter | SE.X1204 |
| Insert Size And Shape | SEEX1204ZZ |
| Material | PCBN |
| Product Type | Milling Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
PCBN
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
interval quantity:
1
