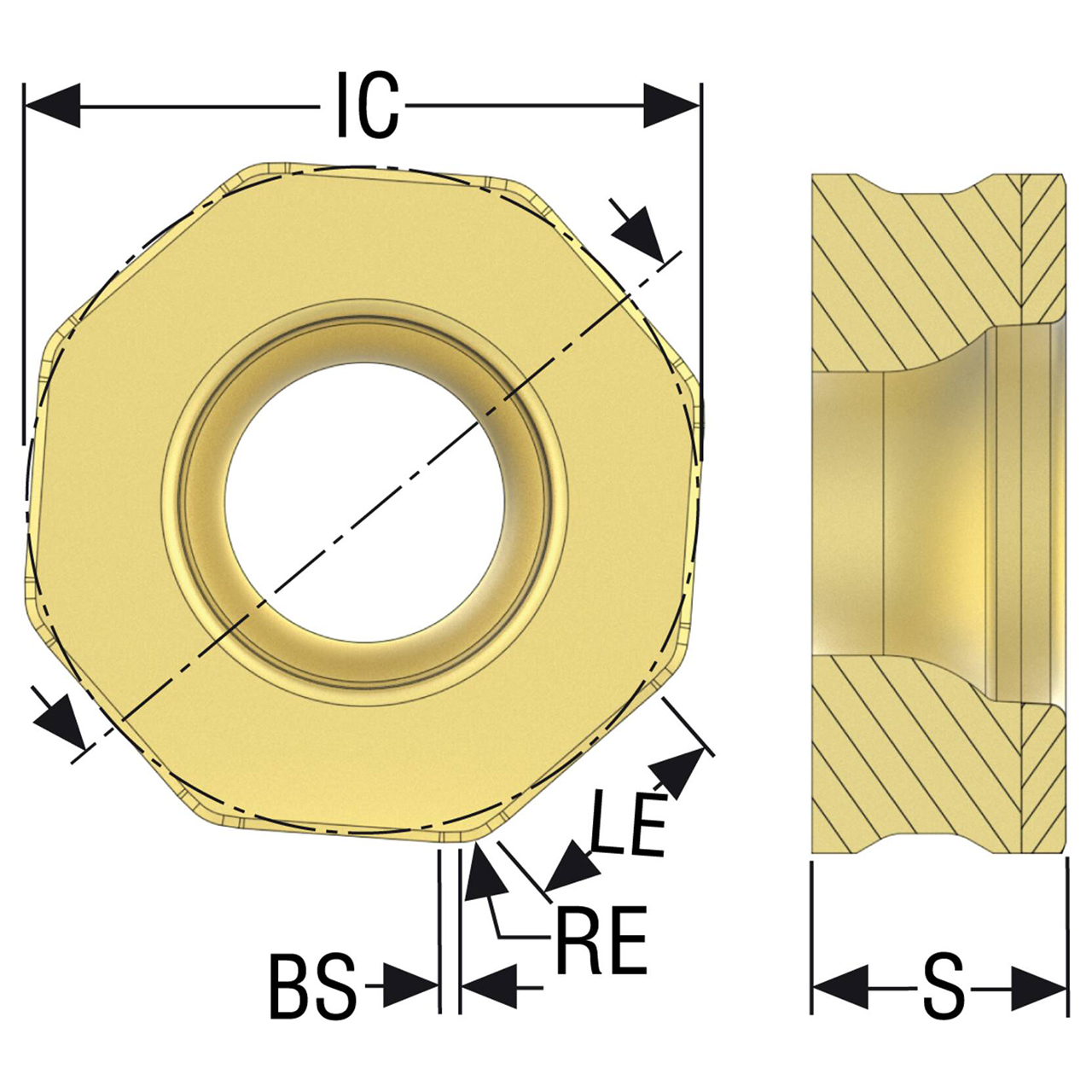

Seco Tools 02904949 | 0.472" Inscribed Circle Diameter x 0.039" Radius x 0.174" Thickness 8 Cutting Edge PCBN Milling Insert

$545.00
Brand:
Seco Tools
Material:
PCBN
Inscribed Circle (Decimal Inch):
0.4720"
Inscribed Circle (mm):
12.00mm
Thickness (Decimal Inch):
0.1740"
Thickness (mm):
4.43mm
interval quantity:
2
SKU:
23282544
UPC:
Weight:
0.01 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping
Seco Tools 02904949 | 0.472" Inscribed Circle Diameter x 0.039" Radius x 0.174" Thickness 8 Cutting Edge PCBN Milling Insert

Product Specifications
Manufacturer Part Number02904949
Fixing Hole Diameter (Decimal Inch)0.197"
Fixing Hole Diameter (mm)5.00mm
Inscribed Circle Diameter (Decimal Inch)0.472"
Inscribed Circle Diameter (mm)12.00mm
Wiper Edge Length (Decimal Inch)0.012"
Wiper Edge Length (mm)0.30mm
Cutting Edge Effective Length (Decimal Inch)0.142"
Cutting Edge Effective Length (mm)3.60mm
Corner Radius (Decimal Inch)0.039"
Corner Radius (mm)1.00mm
Insert Thickness (Decimal Inch)0.174"
Insert Thickness (mm)4.43mm
Cutting Edge Condition CodeS
Cutting Edge Count8
Cutting Geometry Type TechnicalLF
Pocket Seat Code of The CutterON.U0504
Insert Size And ShapeONEW0504
MaterialPCBN
Product TypeMilling Insert
