Seco Tools 02566028 | 0.707" Inscribed Circle Diameter x 0.020" Radius x 0.187" Thickness 8 Cutting Edge Carbide Octomill Insert

$27.18
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
41/58"
Inscribed Circle (Decimal Inch):
0.7070"
Inscribed Circle (mm):
17.96mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
interval quantity:
1
SKU:
23277951
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Seco Tools 02566028 | 0.707" Inscribed Circle Diameter x 0.020" Radius x 0.187" Thickness 8 Cutting Edge Carbide Octomill Insert

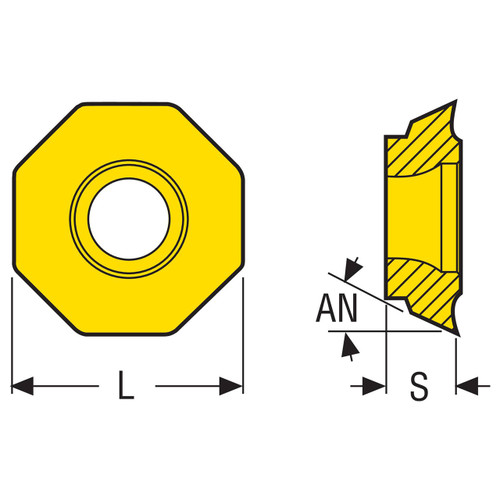

Product Specifications
Manufacturer Part Number02566028
Inscribed Circle Diameter (Decimal Inch)0.707"
Inscribed Circle Diameter (mm)17.96mm
Wiper Edge Length (Decimal Inch)0.079"
Wiper Edge Length (mm)2.00mm
Cutting Edge Effective Length (Decimal Inch)0.276"
Cutting Edge Effective Length (mm)7.00mm
Corner Radius (Decimal Inch)0.020"
Corner Radius (mm)0.50mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Clearance Angle Major (Degree)26 Degree
Cutting Edge Count8
Cutting Geometry Type TechnicalD18
Pocket Seat Code of The CutterOF..0704
Insert Size And ShapeOFEN0704
Insert HandNeutral
MaterialCarbide
Product TypeOctomill Insert
