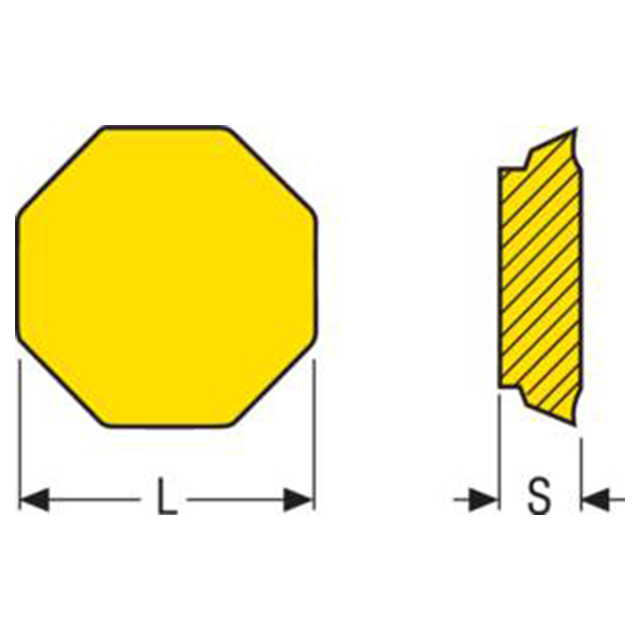

Seco Tools 02566034 | 0.713" Inscribed Circle Diameter x 0.020" Radius x 0.187" Thickness 4 Cutting Edge Carbide Octomill Insert

$29.88
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
5/7"
Inscribed Circle (Decimal Inch):
0.7130"
Inscribed Circle (mm):
18.12mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.74mm
interval quantity:
1
SKU:
23277952
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Seco Tools 02566034 | 0.713" Inscribed Circle Diameter x 0.020" Radius x 0.187" Thickness 4 Cutting Edge Carbide Octomill Insert

Product Specifications
Manufacturer Part Number02566034
Inscribed Circle Diameter (Decimal Inch)0.713"
Inscribed Circle Diameter (mm)18.12mm
Wiper Edge Length (Decimal Inch)0.260"
Wiper Edge Length (mm)6.60mm
Cutting Edge Effective Length (Decimal Inch)0.291"
Cutting Edge Effective Length (mm)7.40mm
Corner Radius (Decimal Inch)0.020"
Corner Radius (mm)0.50mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.74mm
Clearance Angle Major (Degree)26 Degree
Cutting Edge Count4
Cutting Geometry Type TechnicalM16
Pocket Seat Code of The CutterOF..0704
Insert Size And ShapeOFEN0704Z
Insert HandRight Hand
MaterialCarbide
Product TypeOctomill Insert
