Product Specifications
| Manufacturer Part Number | 02616323 |
| Cutting Diameter (mm) | 21.16mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Maximum Cutting Diameter (mm) | 32.00mm |
| Shank Diameter (mm) | 25.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 62.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 53.16mm |
| Protruding Length (mm) | 140.00mm |
| Shank Length (mm) | 161.00mm |
| Overall Length (mm) | 195.00mm |
| Maximum Depth of Cut (mm) | 1.00mm |
| Programming Radius (mm) | 1.74mm |
| Uncut Thickness (mm) | 0.61 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 3.67 Degree |
| Maximum Rotational Speed (rpm) | 19700 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Cylindrical |

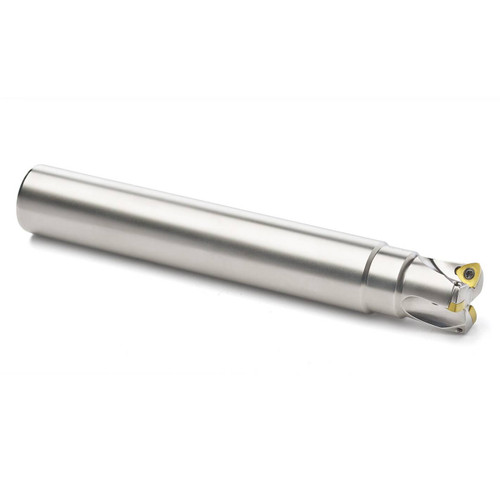

| Product Type | High Feed Trigon Shape Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
5/6"
Cutting Diameter (Decimal Inch):
0.8331"
Cutting Diameter (mm):
21.16mm
Maximum Depth of Cut (Inch):
3/76"
Maximum Depth of Cut (Decimal Inch):
0.0394"
Maximum Depth of Cut (mm):
1.00mm
Shank Type:
Cylindrical
Shank Diameter (Inch):
63/64"
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
