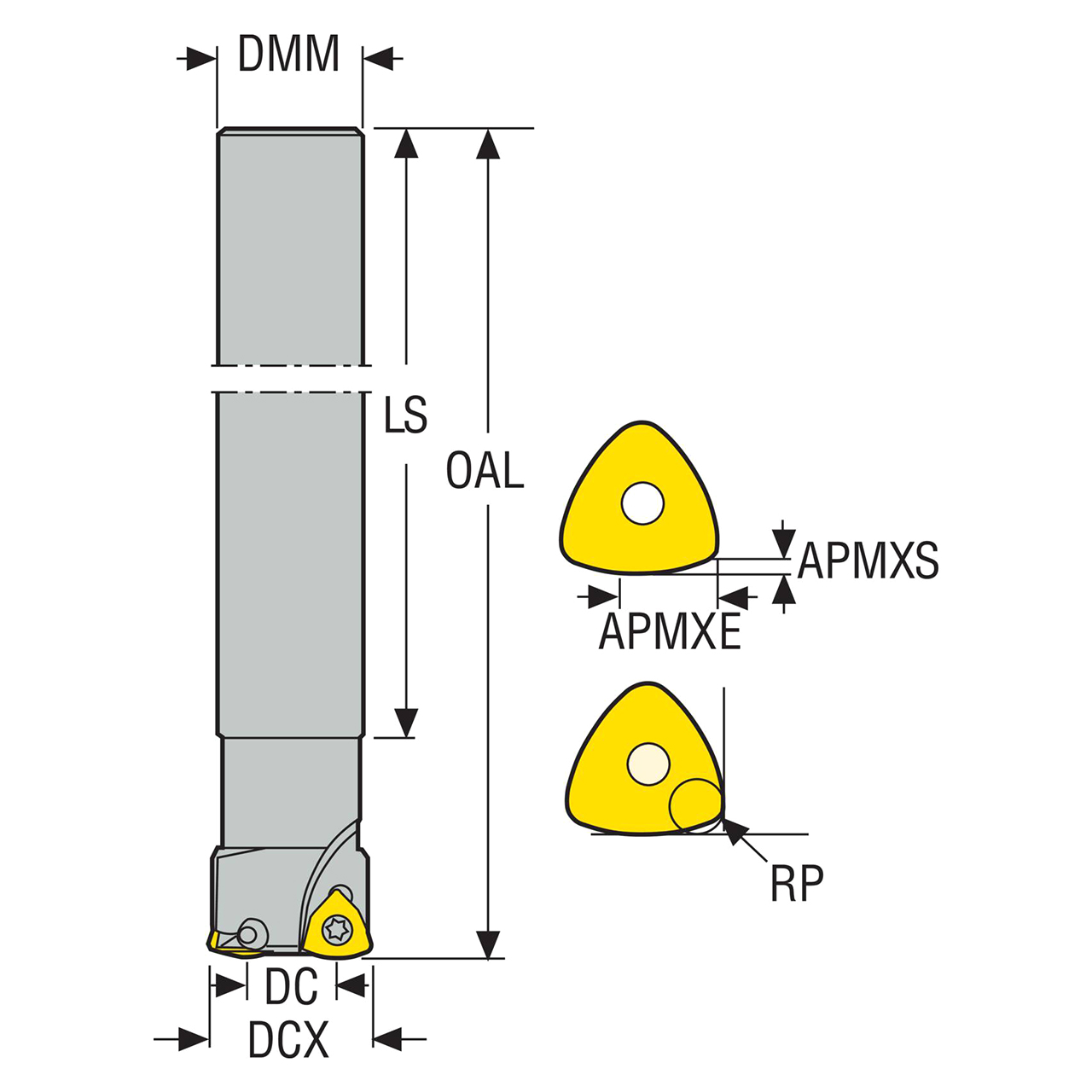

| Manufacturer Part Number | 02554443 |
| Cutting Diameter (mm) | 9.25mm |
| Connection Diameter Machine Side (mm) | 14.00mm |
| Maximum Cutting Diameter (mm) | 16.00mm |
| Shank Diameter (mm) | 14.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 25.25mm |
| Protruding Length (mm) | 105.00mm |
| Shank Length (mm) | 127.00mm |
| Overall Length (mm) | 150.00mm |
| Maximum Depth of Cut (mm) | 0.63mm |
| Programming Radius (mm) | 1.00mm |
| Uncut Thickness (mm) | 0.39 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 6.1 Degree |
| Maximum Rotational Speed (rpm) | 53400 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Cylindrical |
| Product Type | High Feed Trigon Shape Insert |
