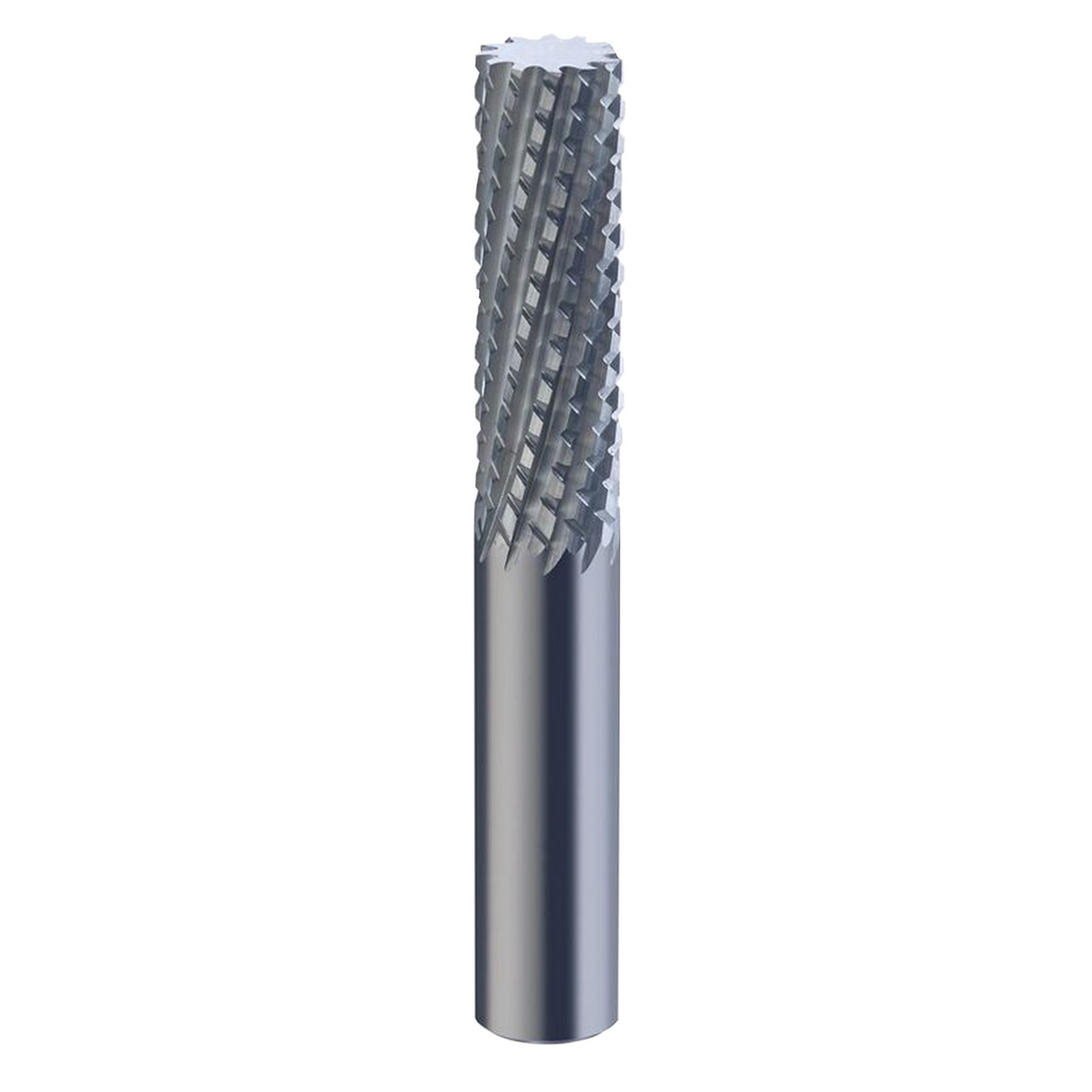

Features:
- Multi-flute design and positive geometry to shear with minimal pressure and delamination
- Unique clearance grind minimizes contact between tool diameter and workpiece eliminating friction
- Left hand flutes engineered to control the fibers within CFRP, preventing excessive fiber breakout
- Excels at trimming and profiling difficult and abrasive fiber filled plastics
Product Specifications
| Cutting Diameter (Inch) | 1/2" |
| Shank Diameter (Inch) | 1/2" |
| Length of Cut (Inch) | 1-1/2" |
| Overall Length (Inch) | 3-1/2" |
| Shank Length (Inch) | 2" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Helix Angle | 15 Degree |
| Coating | Crystalline Diamond |
| Number of Flutes | 12 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Cutting Diameter (Inch):
1/2"
Cutting Diameter (Decimal Inch):
0.5000"
Cutting Diameter (mm):
12.7mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.1mm
Shank Diameter (Inch):
2"
Shank Diameter (Decimal Inch):
2.0000"
Shank Diameter (mm):
50.8mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.9mm
Finish/Coating:
TD
