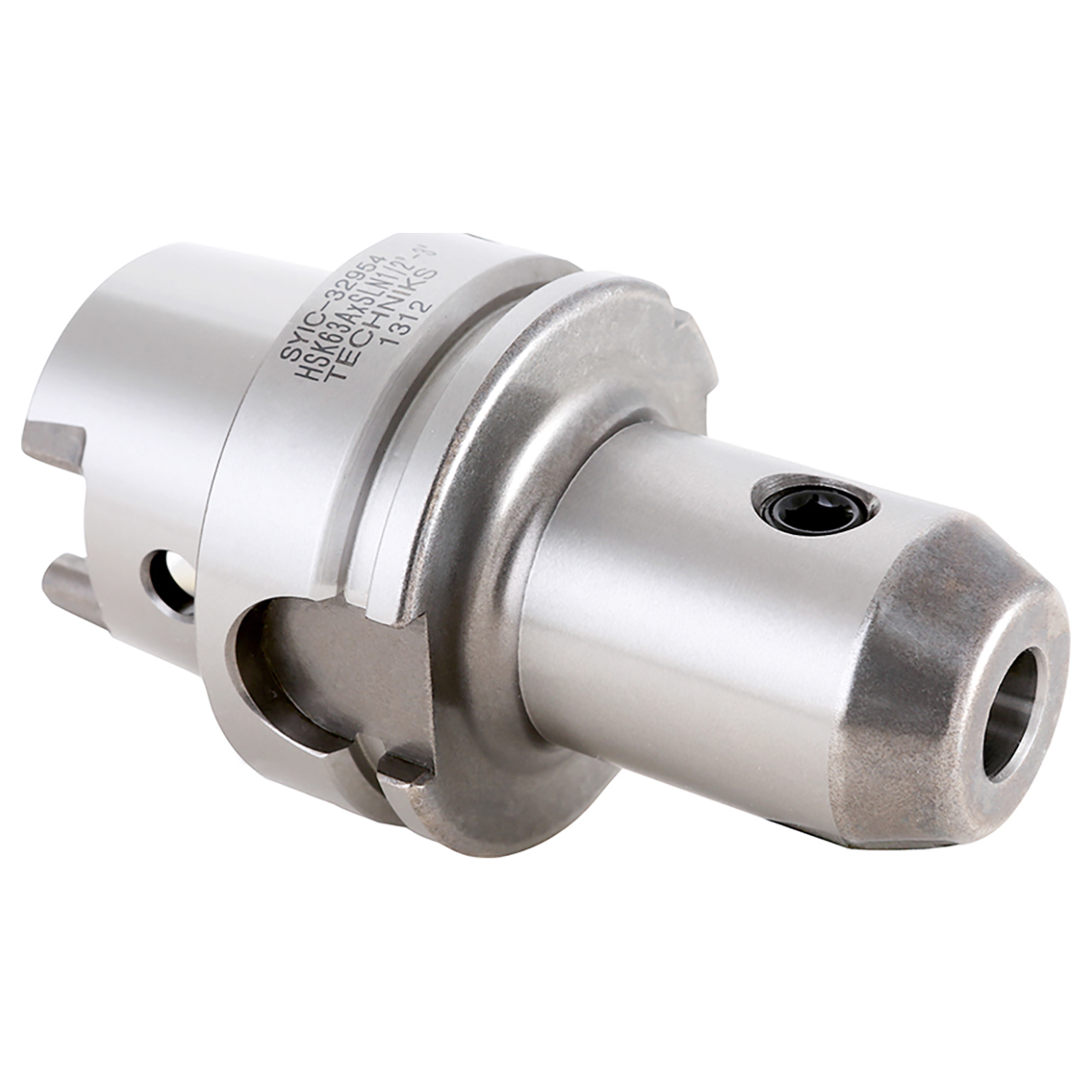

Features:
- H5 bore tolerance for improved concentricity and tool life
- Balance to 15,000 RPM @ G6.3
- Coolant tubes for through-spindle coolant
Product Specifications
| Taper | HSK63A |
| Body Diameter (Inch) | 1.89" |
| Body Width (Inch) | 1.89" |
| Overall Diameter (Inch) | 2.48" |
| Bore Size (Inch) | 0.75" |
| Projection (Inch) | 4" |
| Nose Diameter (Inch) | 1.75" |
| Overall Length (Inch) | 5.26" |
| Material | 8620 Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Techniks
Taper Size:
HSK63A
Body Diameter (Decimal Inch):
1.8900"
Nose Diameter (Decimal Inch):
1.7500"
Overall Length (Decimal Inch):
5.2600"
Overall Diameter (Decimal Inch):
2.4800"
Bore Size (Decimal Inch):
0.7500"
