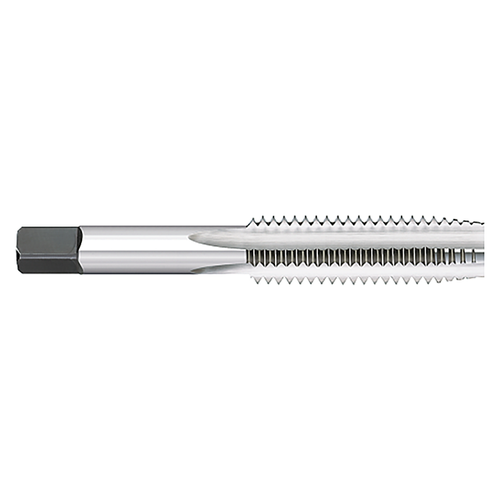

Titan USA TT75424 | 1/4"-28 Thread x 0.2550" Shank x 1.0000" (1) LOC x 2.5000" (2-1/2) OAL 4 Flute TIN Coated High Speed Steel Straight Flute Tap

$8.24
interval quantity:
1
SKU:
17981026
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

These Titan USA high speed steel, general purpose hand taps feature TiN coating, which provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds.

Features:

  • For optimal results, use a Taper Tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
  • Taps are on blanks that meet ANSI specifications
  • TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT75424
Across Flat (Inch)0.1910"
Length of Cut (Inch)1.0000" (1)
End Length (Inch)0.3125" (5/16)
Shank Diameter (Inch)0.2550"
Overall Length (Inch)2.5000" (2-1/2)
Thread Size (Inch)1/4"-28
Number of Flutes4
LimitH3
TypeBottom
SubstrateHigh Speed Steel
CoatingTIN
Product TypeStraight Flute Tap
