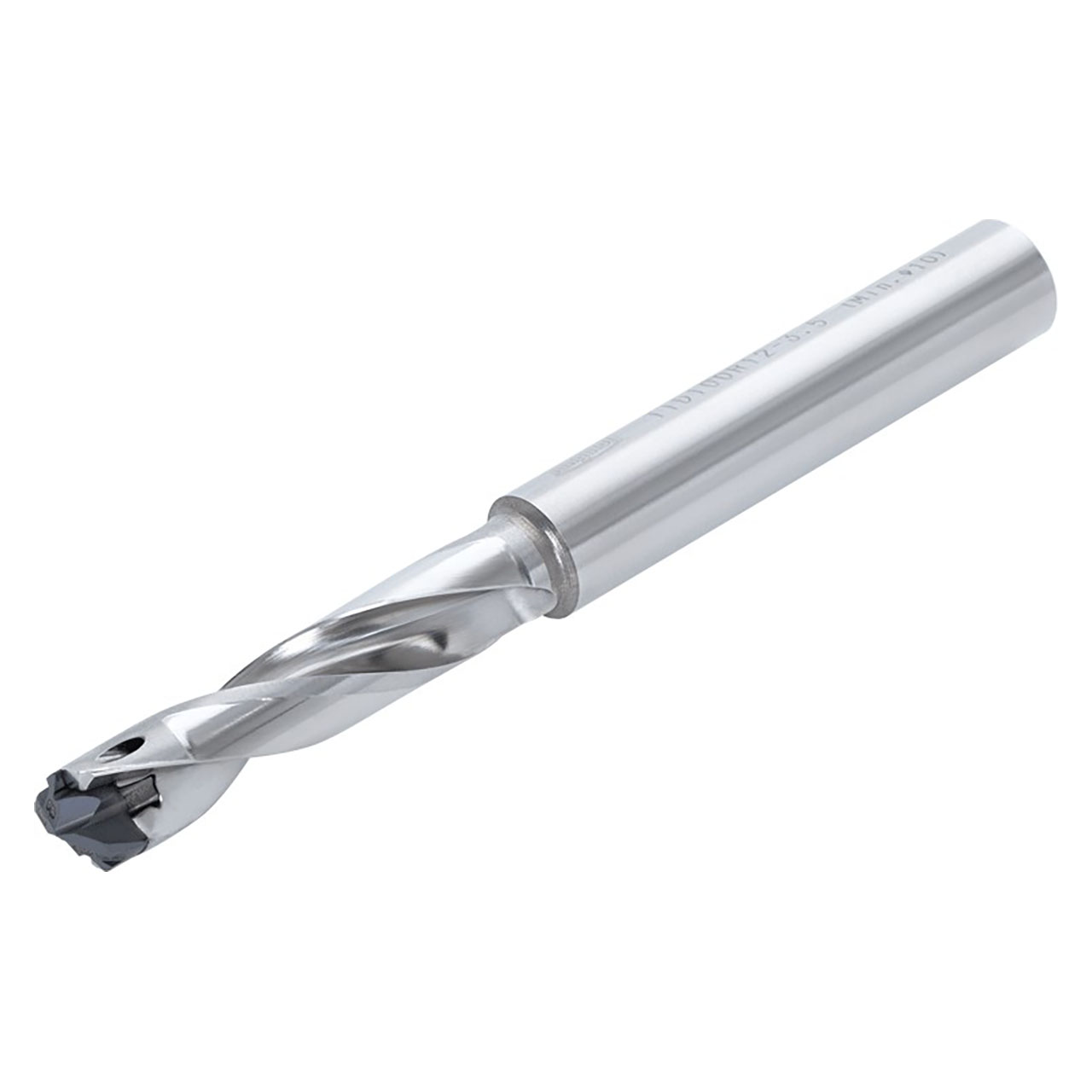

"DrillMeister" TIDC L/D=5 indexable head drills.
Product Specifications
| Cutting Diameter Maximum (mm) | 11.4 mm |
| Cutting Diameter Minimum (Inch) | 11 mm |
| Cutting Diameter Minimum (mm.) | 11 mm |
| Connection Diameter Machine Side (Inch) | 0.394" |
| Overall Length (mm) | 123.13mm |
| Point Length (Inch) | 0.057" |
| Shank Length (Inch)) | 1.417" |
| Shank Length (mm) | 1.89" |
| Insert Seat Size Code (SSC) | 9 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.4488"
Minimum Cutting Diameter (Decimal Inch):
0.4331"
Body Material:
Steel
Overall Length (Decimal Inch):
4.8480"
Point Length (Decimal Inch):
0.0660"
Shank Length (Decimal Inch):
2.5590"
Usable Length (Decimal Inch):
1.8110"
interval quantity:
1
