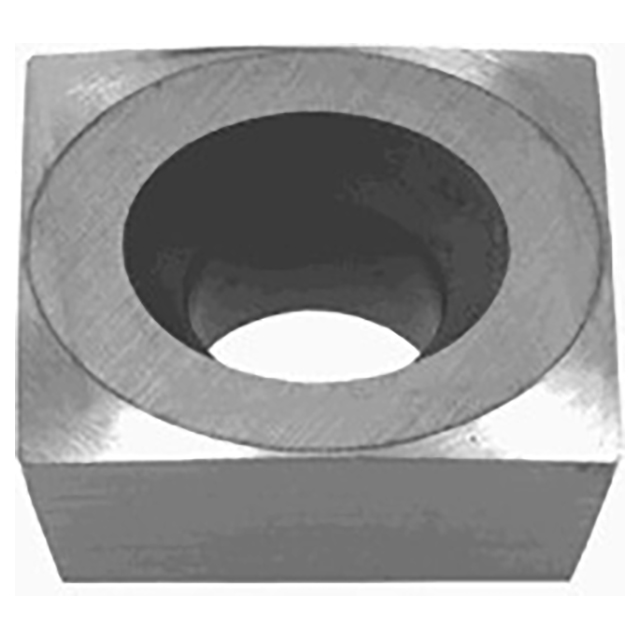

Square insert for high precision machining.
Product Specifications
| # MFG | 6807105 |
| Cutting Edge Effective Length (Inch) | 1/2" |
| Corner Radius (Inch) | 0.0787" |
| Depth of Cut Maximum (Inch) | 0.004" |
| Insert Thickness (Inch) | 0.187" |
| Insert Width (Inch) | 1/2" |
| Number of Cutting Edges | 4 |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | N308 |
| Cutting Edge Material | Cermet |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
N308
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
interval quantity:
10
