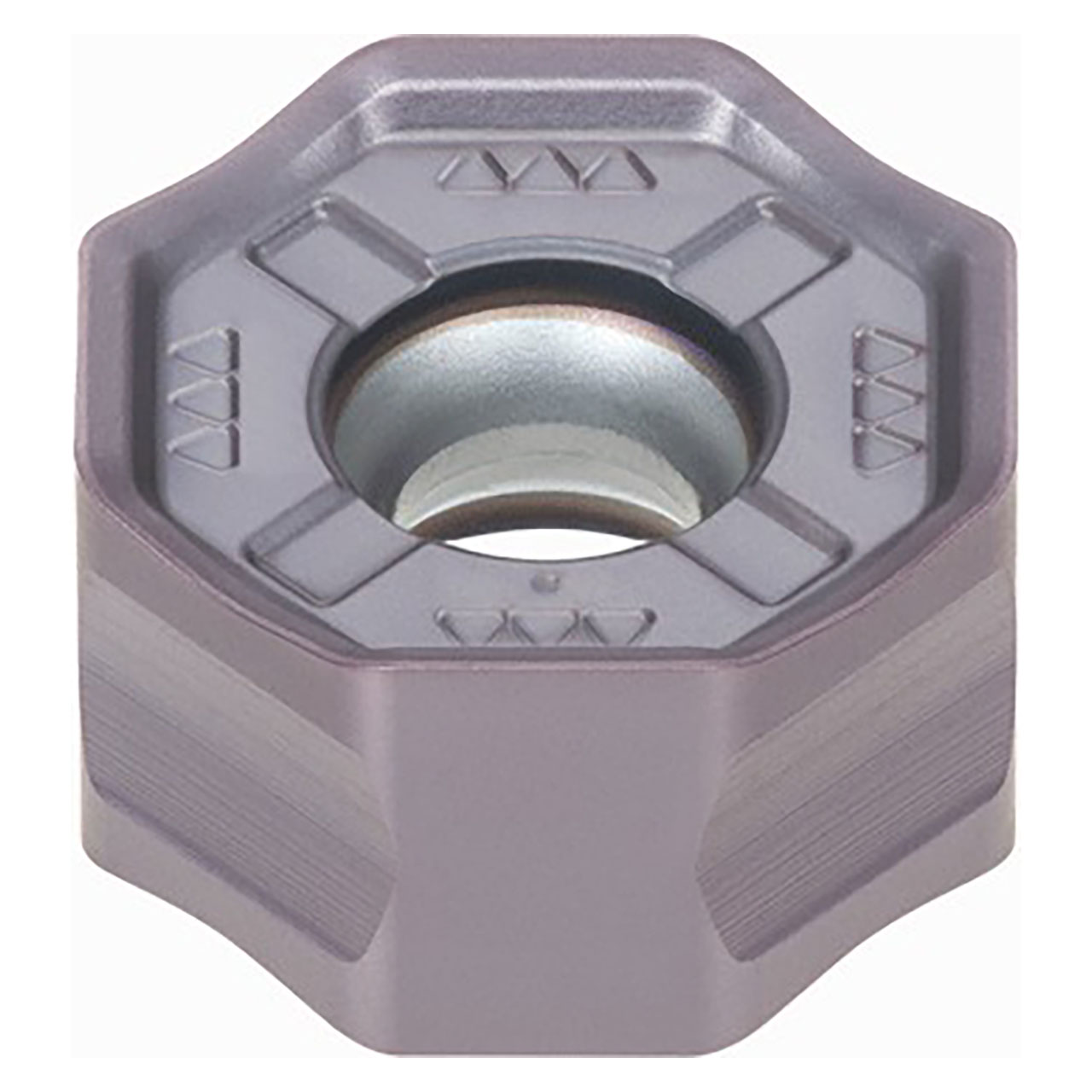

Double sided wiper insert with 8 cutting edges in using with ONGU05 insert.
Product Specifications
| # MFG | 6918342 |
| Cutting Edge Effective Length (Inch) | 0.197" |
| Corner Radius (Inch) | 0.063" |
| Depth of Cut Maximum (Inch) | 0.134" |
| Inscribed Circle Diameter (Inch) | 0.512" |
| Insert Thickness (Inch) | 0.293" |
| Maximum Feed per Tooth | 0.0197"/tooth |
| Minimum Feed per Tooth | 0.0039"/tooth |
| Number of Cutting Edges | 16 |
| Wiper Edge Length | 0.154" |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | AH3225 |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3225
Inscribed Circle (Inch):
33/64"
Inscribed Circle (Decimal Inch):
0.5120"
Inscribed Circle (mm):
13.00mm
Thickness (Inch):
19/64"
Thickness (Decimal Inch):
0.2930"
Thickness (mm):
7.44mm
interval quantity:
10
