Product Specifications
| EDP Number | 57256 |
| Diameter (Decimal Inch) | 0.0625" |
| Diameter (Inch) | 1/16" |
| Diameter (mm) | 1.59mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.2188" |
| Length of Cut (Inch) | 7/32" |
| Length of Cut (mm) | 5.56mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Ball Nose Radius (Decimal Inch) | 0.0313" |
| Ball Nose Radius (mm) | 0.79mm |
| Series | E2015 |
| Shank Style | Plain |
| Helix Angle | 39 Degree |
| Number of Flutes | 2 |
| Ball Nose Radius (Inch) | 1/32" |
| Coating | Bright |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

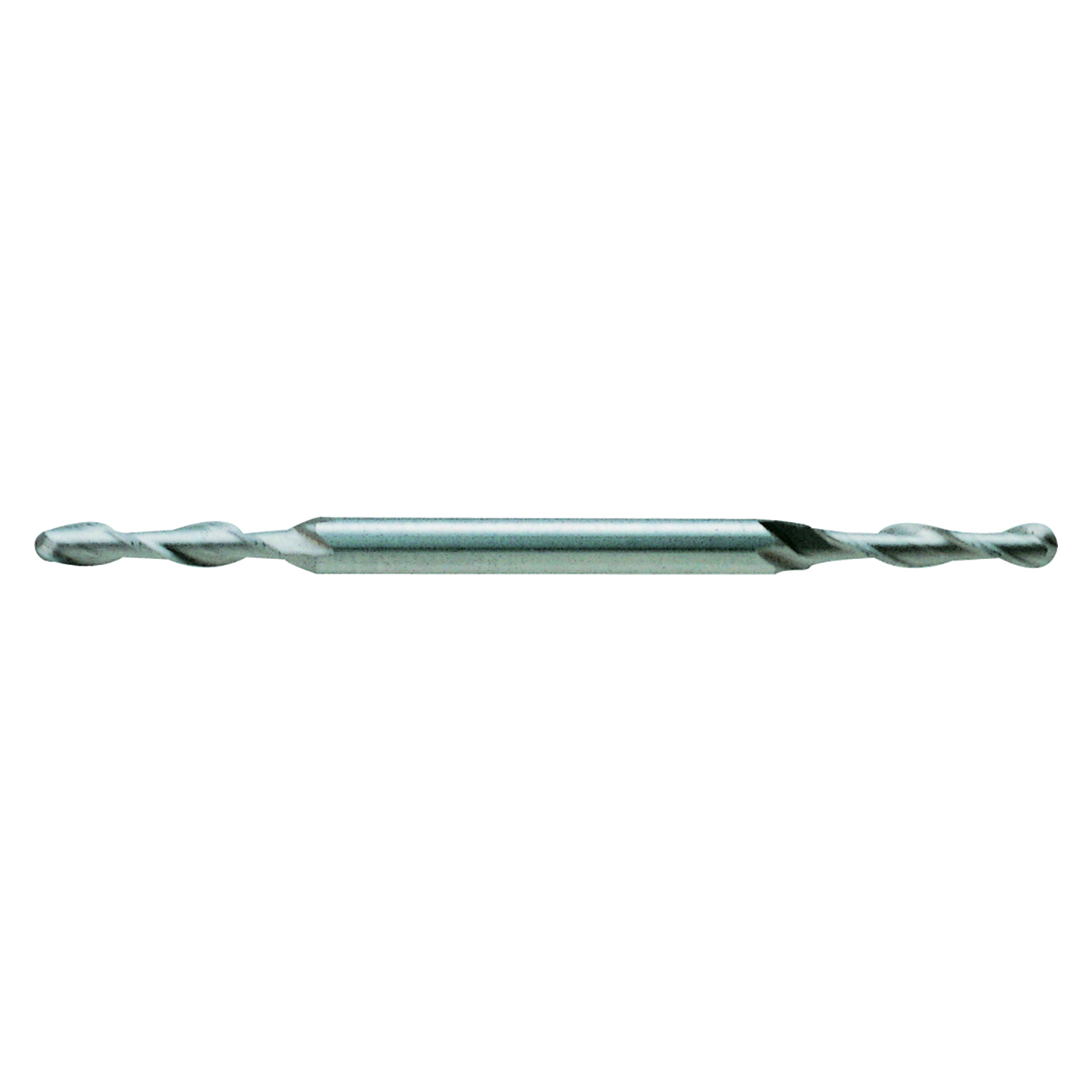

| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/16"
Mill Diameter (Decimal Inch):
0.0625"
Mill Diameter (mm):
1.59mm
Number of Flutes:
2
Length of Cut (Inch):
7/32"
Length of Cut (Decimal Inch):
0.2188"
Length of Cut (mm):
5.56mm
Material:
HSSCo8
Shank Type:
Plain
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Bright
Cutting Direction:
HSSCo8 & HSS 2 Flute Miniature Long Length Ball Nose Double
Helix Angle (Degree):
39 Degree
