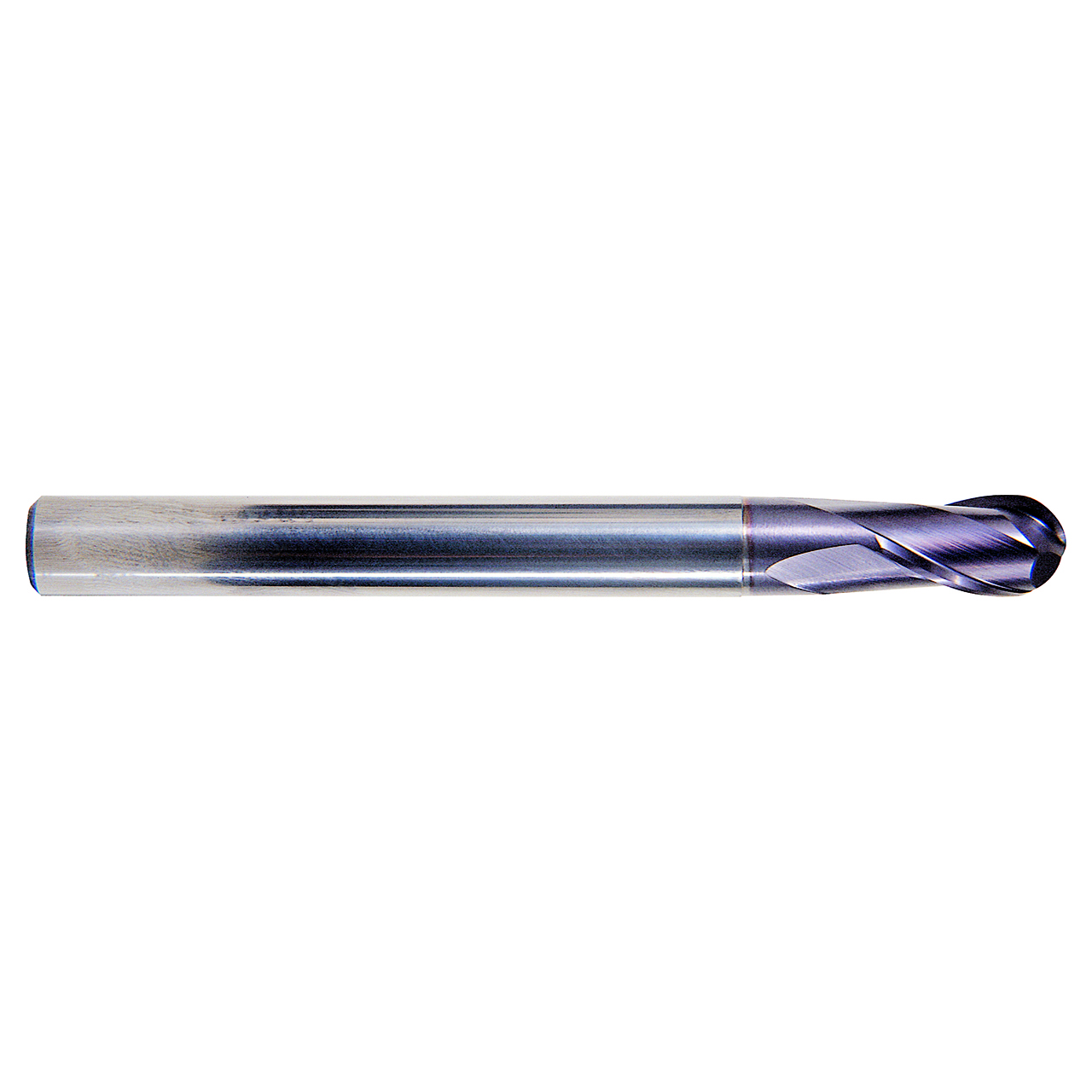

Product Specifications
| Manufacturer Part Number | 93517 |
| Cutting Diameter (Inch) | 1/8" |
| Cutting Diameter (Decimal Inch) | 0.125" |
| Cutting Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 5/16" |
| Length of Cut (Decimal Inch) | 0.312" |
| Length of Cut (mm) | 7.94mm |
| Overal Length (Inch) | 2-3/4" |
| Overal Length (Decimal Inch) | 2.750" |
| Overal Length (mm) | 69.85mm |
| Ball Nose Radius (Inch) | 1/16" |
| Ball Nose Radius (Decimal Inch) | 0.062" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
1/8"
Cutting Diameter (Decimal Inch):
0.1250"
Cutting Diameter (mm):
3.18mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
6.35mm
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3120"
Length of Cut (mm):
7.94mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
Number of Flutes:
2
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
AlTiN
