| Manufacturer Part Number | 93579 |
| Cutting Diameter (Inch) | 1/8" |
| Cutting Diameter (Decimal Inch) | 0.125" |
| Cutting Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 5/16" |
| Length of Cut (Decimal Inch) | 0.312" |
| Length of Cut (mm) | 7.94mm |
| Overal Length (Inch) | 4" |
| Overal Length (Decimal Inch) | 4.000" |
| Overal Length (mm) | 101.60mm |
| Ball Nose Radius (Inch) | 1/16" |
| Ball Nose Radius (Decimal Inch) | 0.062" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | AlTiN |

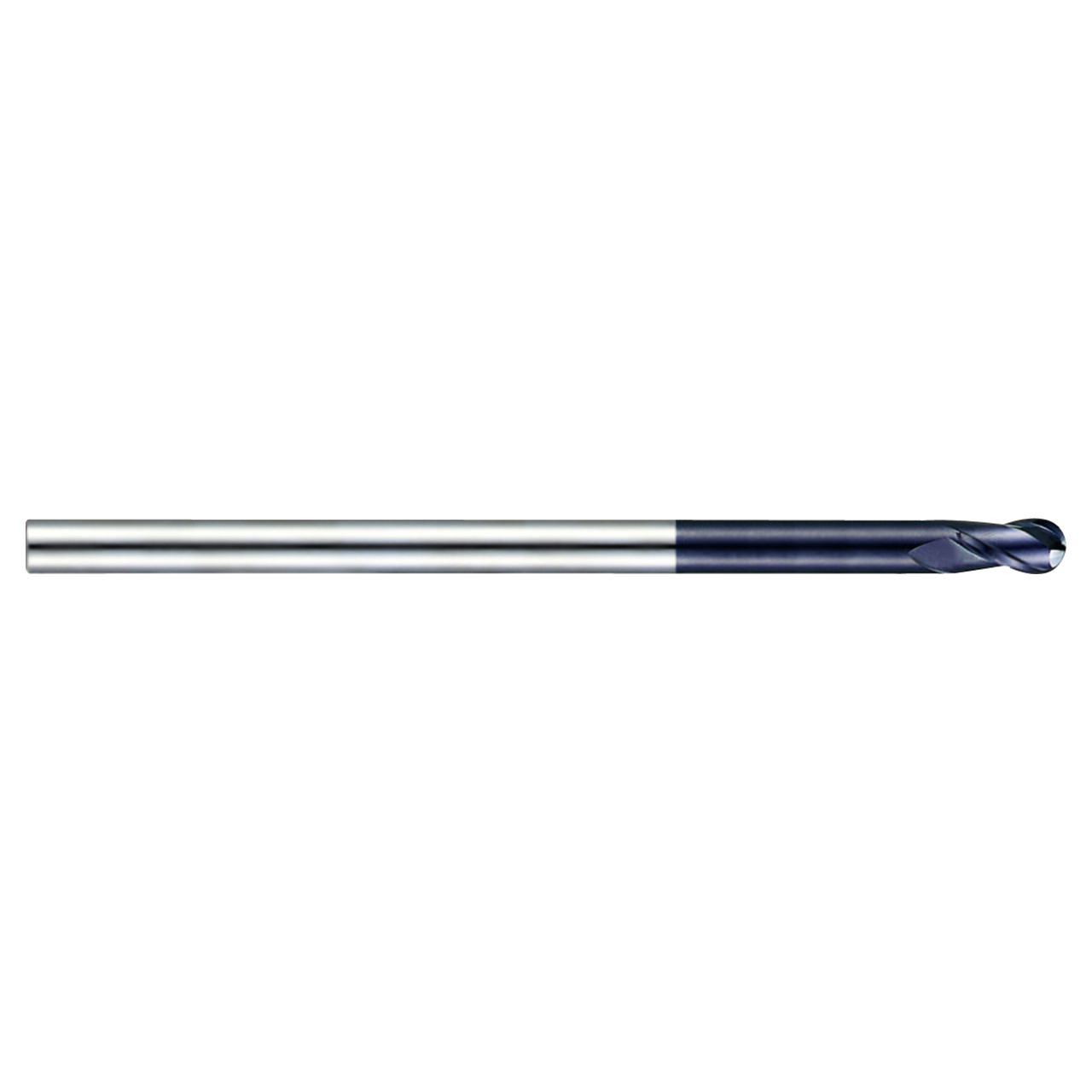

| Product Type | Ball Nose End Mill |
