Product Specifications
| # Manufacturer Number | E9A87020 |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 3.1875" |
| Overall Length (Inch) | 3-3/16" |
| Overall Length (mm) | 80.96mm |
| Length of Cut (Decimal Inch) | 1.3750" |
| Length of Cut (Inch) | 1-3/8" |
| Length of Cut (mm) | 34.93mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 3 |
| Coating | Bright |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9A87 |
| Cutting Direction | Right |

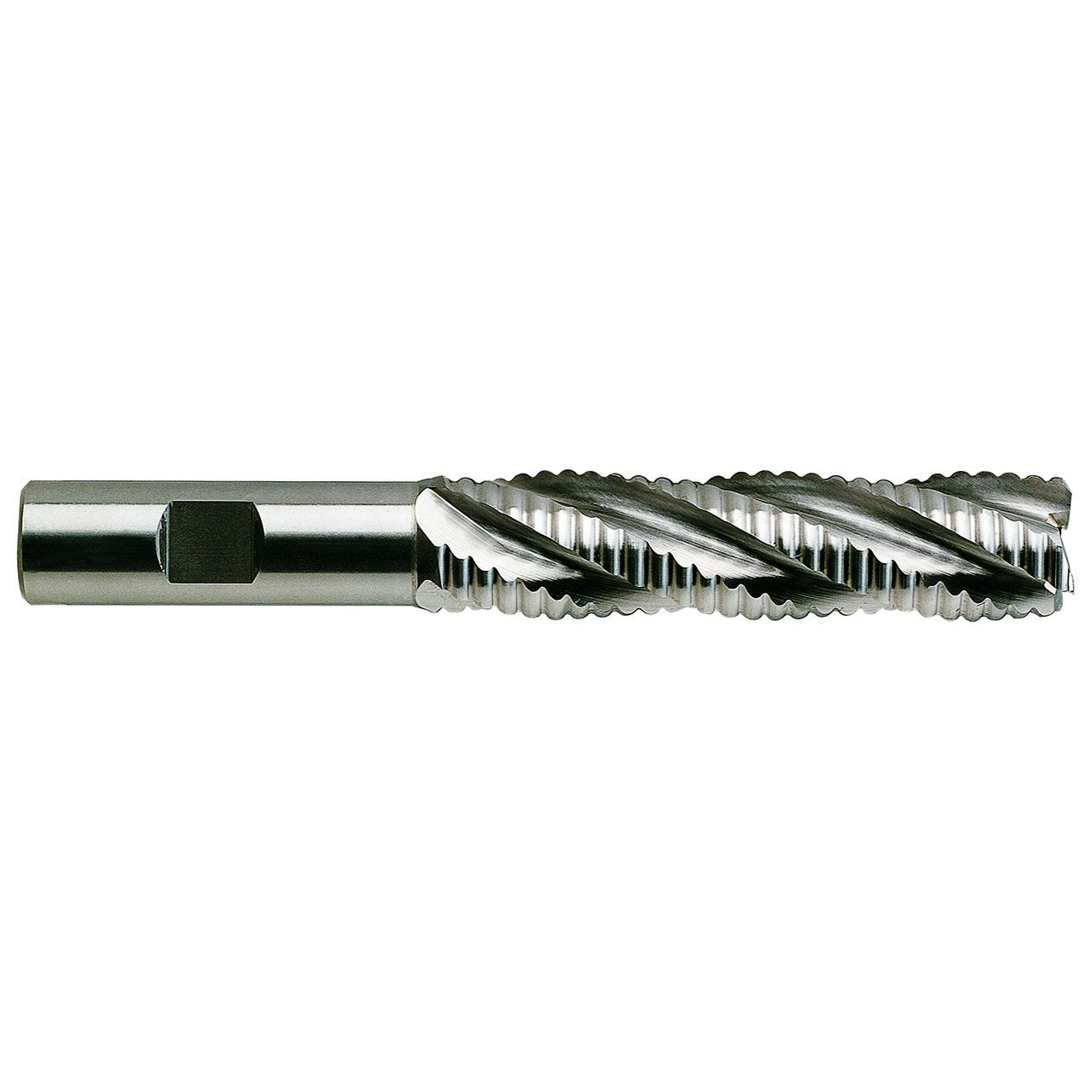

| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
3
Length of Cut (Inch):
1-3/8"
Length of Cut (Decimal Inch):
1.3750"
Length of Cut (mm):
34.93mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Material:
Premium HSS-PM
Finish/Coating:
Bright
Overall Length (Inch):
3-3/16"
Overall Length (Decimal Inch):
3.1875"
Overall Length (mm):
80.96mm
Center Cutting (yes/no):
Yes
